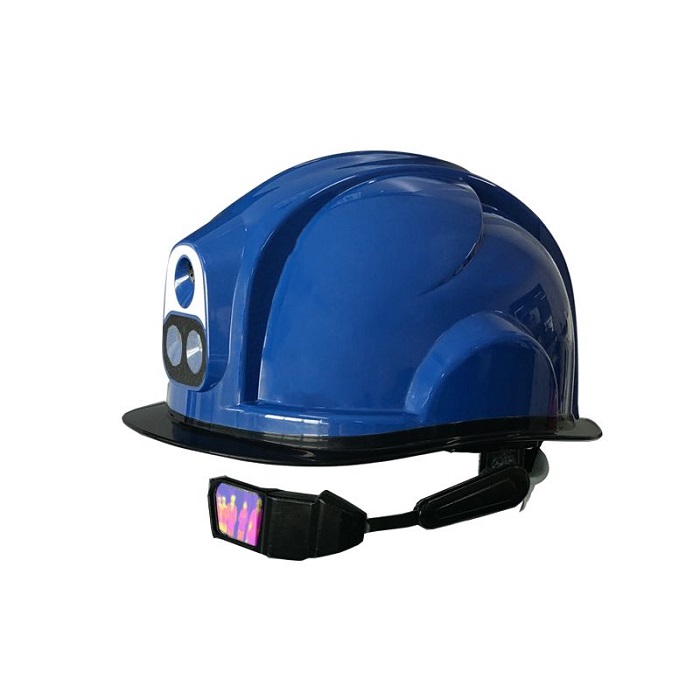

Smart Temperature  Measuring Helmet

1.Anti-shake, high-speed capture

  You can clearly capture photos even driving  (speed 80km/h below), using advanced optical  waveguide technology.

2.Ergonomic Design

  Integrated design, which is more comfortable to  wear. The weight is only 620g. No discomfort  even wear a whole day. lighter weight than  similar wearable devices. The two-color mold  design is adopted, the brim is transparent, make  the user's vision wider.

3.Accord with GB2811-2019 standard

4.Four natural ventilation inlets and outlets

  Four natural ventilation inlets and outlets  designed according to Thermodynamics, with  graphene and professional heat insulation   technology, even in hot summer or low  temperature environment, the helmet can ensure  all a comfortable user experience. Providing  more humanized design for frontline workers.

5.The lens angle is designed according to ergonomics

  The visible light and infrared thermal imaging lens is designed

  downward by 15 °, when people take pictures, they are used to raise  their head slightly, so we make the camera downward, which is       more,convenient for shooting.

6.AR visible light, adjustable from all direction

  Large viewing angle;Virtual screen 74 inch（3m);High Brightness;High Resolution;High Contrast ration;No Dark corner;No Blind area

  The angle of the optical display  can be adjusted in all directions,  suitable for all people

7.Removable battery, large capacity and work longer

  Capacity: 5000mAh，Battery Standby mode: 72 hours

  Automatic recognition: 6 hours Live broadcast，Mode: 4 hours

8.Auxiliary lighting, laser positioning

  Equipped with a bright LED light,  human silhouette can be seen clearly  within 15 meters at night, works well  at night.

  1 laser assisted in positioning photo  Light. When the laser is positioned to  a certain position, photo will be  captured.

9.imported high-definition infrared thermal sensor

  Imported thermal imaging  module, high resolution,  Real time return back  thermal image on computer  clearly showing the highest      temperature Degree and  alarm personnel.

The distance of infrared  temperature measurement  module is adjustable, and  the response is fast. The  unique optical structure  design can make it suitable  for long-distance  temperature measuremen

Normal working in  extreme temperature  environment:-30℃-+70℃

10.Built-in 4G module, real-time monitoring, post back

   High-speed 4G network transmissior;1080P HD Video;

   GPS Location, Electronic Fenc;4G Wireless walkie-talkie

   Real Time monitoring and post back

   Android system is compatible with third-party  software

   Removable battery

Five Powerful Functions
HD Thermal imaging module 320*240	a.Efficiency: 200 Person/Minute；  b.Temperature Range: -10°C~330°C c.Distance 0.5 meter ~ 5 meters；  d.98% Fever Detection Ratio: 98%
4G Module	a.Video file real time transmission；  b.Back-end management platform c.Real time communication；  d.Real time data recording
Visible light	a.Face recognition；  b.Quick sport capture
GPS tracking	a.Electronic fence；    b.Trace tracking
5. Display screen	2.4” Touch screen
Main parameter
Operation system	Android 7.1.1
Processor	MTK6739 Quad-core ARM@Cortex-A53 MPCore
Storage capacity	Support 16G/32G/64G/128G(With Standard 32GB TF Card)
WiFi	Support 802.11b/g protocol, 2.4GHZ
3G/4G	support
4G/3G function	4G：FDD:B1/B2/B3/B4/B5/B7/B8/B28B(B12,B17,B20 Choose one of three);     TDD:B38/B39/B40/B41 3G: WCDMA 850/900/1700/1900/2100MHz
Bluetooth	BT4.0
Working temperature	-30°C to +70°C
Lithium battery	5000mAh
Working time	standby more than 25h, camera work more than 5h
Data upload	support D1 H.264 data upload
Wide angle of view	140 degree
Distance of night vision	The human faces can be seen at 10 Meters in a totally black environment
Waterproof	IP66
Dimension/weight	(L*W*H) 280*140*220mm/620g
Management software	1.Real time play: support real-time 25 way data 2.Data upload: support 720P 1080P H.264 data upload 3.Beidou/GPS: Same Smarteye screen can check up to 256  camera position tracking 4.Wireless intercom:Real time 4G network wireless intercom,Multi person meeting

About US

We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaged in Security Product Area. Within last more 10 years, specialized in R&D, Designed, manufacture &sell security product of all over the world.

Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.
