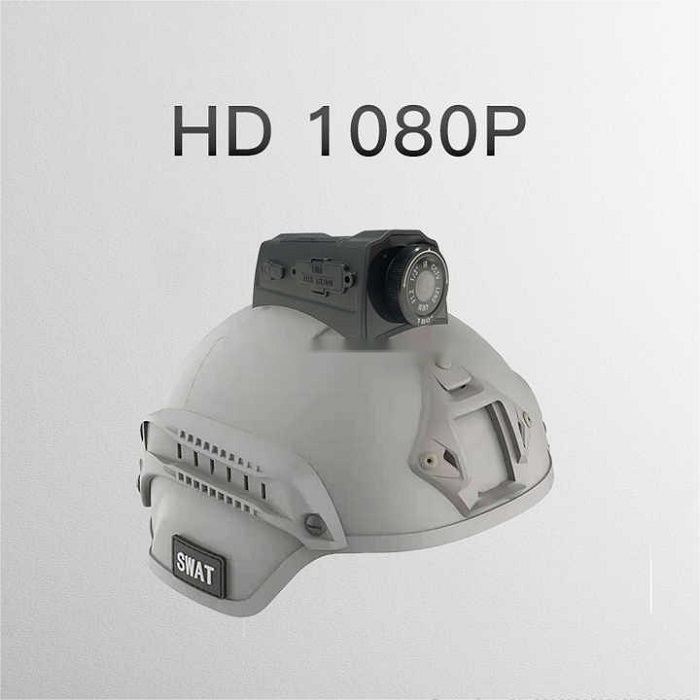

Night vision1080p tactical helmet camera with RJ45 wifi transmission gps two way voice connected with COFDM mesh

Technical Parameters

1：Interface: External leakage 6-core aviation plug (4-core for network port, 2-core for power supply), ensuring that the pins can pass through the current required by the camera

2：Power supply: 12V or 5V power supply

3：Supporting protocols: Supports GB28181, standard ONVIF2.6 protocol, and full network protocol

4：Management method: Support web interface management, adjust modes, streams, etc

5：Client browsing: Supports browsing on IE6.0 and above browsers, as well as client browsing

6：Main stream: 1920 * 1080, 1-30 frames per second

7：Video compression bitrate: 128Kbps-4096bps continuously adjustable
8.：Video Format:H.264/H.265

9：Video coding resolution:2560*1440,2304*1296、1920*1080、1280*720

10：Storage card: Comes with a 32GB storage card at the factory, supporting a maximum of 256GB storage card

11：Chip: 1/2.8 micro starlight

12：Support: wifi and GPS

13.Minimum illumination: Color 0.05Lux@F1.2 ; Black and White 0.005Lux@F1.2 ;

14: Signal to noise ratio:>42db (AGC OFF)

15:Wide dynamic range: Super wide dynamic>86db

16:Character overlay: Supports channel name, date and time, and adjustable position of 3 sets of character overlay

17:Data storage: videos, images

18:Storage mechanism: Loop recording, alarm recording

19:Alarm data transmission: Browser, management software, I0 output

20:Battery :Built-in 4000mAh battery, video recording ≥6 hours；stand  ≥25hours

21：Dimension/weight ：110*60*47mm/ About 180g

22：Working temperature: -20 ℃ to +60 ℃

23：Working humidity: 0% -90%

About US

We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaged in Security Product Area. Within last more 10 years, specialized in R&D, Designed, manufacture &sell security product of all over the world.

Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.
