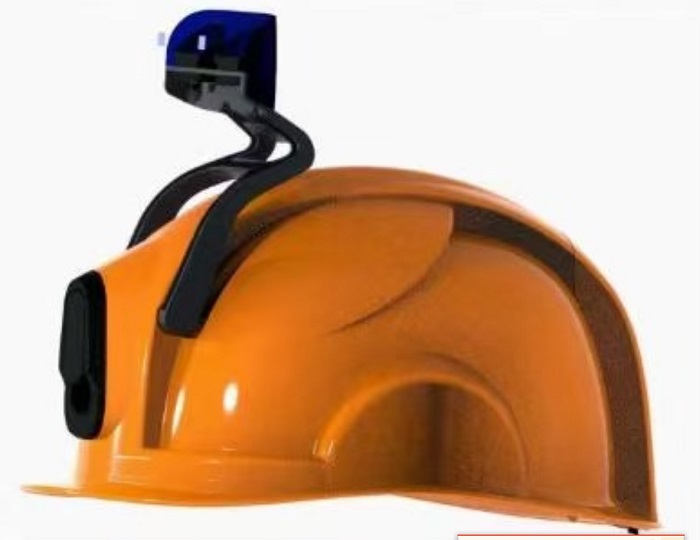

ZP622G-AR 4G smart helmet with AR glasses oled display and EEG Brain Computer Interface

  • Brand   OXIANG
  • Model   ZP622G-AR
  • Description

    4G smart helmet with AR glasses oled display and EEG Brain Computer Interface...


4G smart helmet with AR glasses oled display and EEG Brain Computer Interface

AR eyepiece display panel 0.49 inches
Resolution 1920 1080P
Field of view angle 42 1 @ 0D
Eye box 10 6mm Pupil distance 12 1mm
Deviation<0.7%Brightness (nits)>270Diopter '-5D~0D
Opreting system  Android 7.1.1
Chipset  MTK6739
Processor  Quad-core ARM@Cortex-A53 MPCore 1.3GHz/512KB unified L2 cache
Sensor  GC4603
Storage capacity Support 16G/32G/64G/128G(With Standard 32GB TF Card)
4G/3G Band  4GFDD:B1/B2/B3/B4/B5/B7/B8/B20/B28;
(4G flow:1.6m/s; 5.6G/hour)
3G: WCDMA 850/900/1700/1900/2100MHz
Wifi function builtin,support 802.11b/g protocol/2.4GHZ
GPS function Built in Beidou global positioning module (support for mobile trajectory query)
bluetooth function BT4.0
SOS support
Video coding resolution 1920X1080 30P1080P@30fps /720@30fps  MP4 format
Video Bitrate 256kbps-8Mbps
Focus range:  0.5 meters - Infinity
Wide angle of view 140 degree
LED white lights Built-in 1pcs large functional LED white light (1W) Light distance 10M
Laser positioning Built-in one laser, accurate positioning camera target without deviation
Night Vision Distance 10M in total darkness.
Waterproof  IP67
Dimension/weight  289*233*150mm /520g
Battery  Replaceable 4200mAh battery,video recording:7hour,video+lighting:5hours
Replaceable 6000mAh battery,video recording:10hour,video+lighting:8hours
Operating temperature  -30 degrees C to +70 degrees C


Completely portable color video and audio recorder is the must have camera for event recording. Keep a record of your interactions with suspects or criminals. No more worry about whether or not someone has told a different story or behaved poorly only to blame yo u. This miniature video cam with audio is the prefect device to cover your actions in the field or document a scene. Perfect for anyone who needs to capture video and audio on the go.
