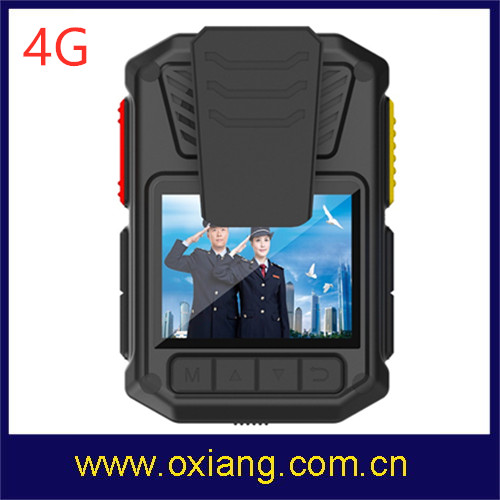

OX-ZP904G- 4G Body Worn Camera

  • Brand   OXIANG
  • Model   OX-ZP904G
  • Description

    4G Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body Wo...

Detail

4G,WIFI GPS & Bluetooth  Police Body Camera

Short Description:

Ambarella H22, H.265 coding, 4G ,Wi-Fi Streaming,

Product Tags:

4G| H22 | PTT | Optional NFC | Bluetooth |  Built-in GPS | Built-in Wi-Fi  |G-sensor

Overview:

- 1440P video + Live streaming at the same time.

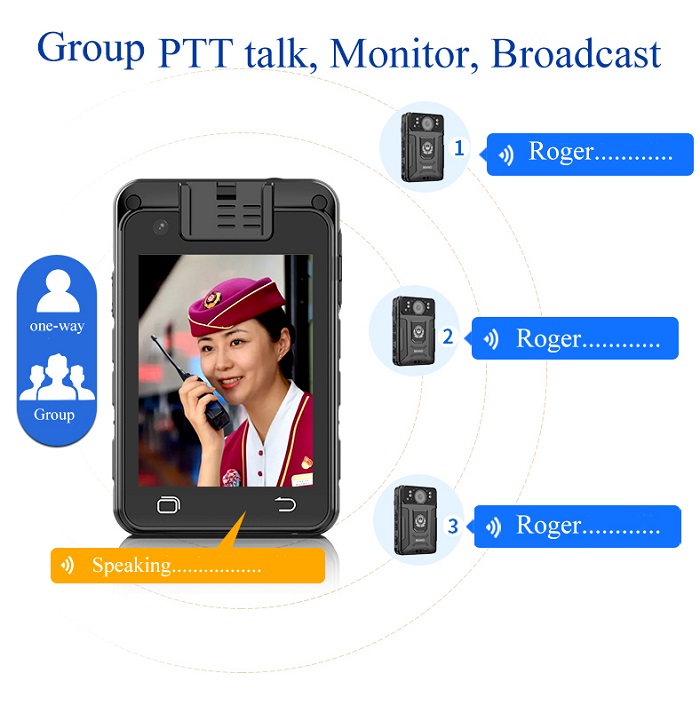

- Group PTT, real time communication

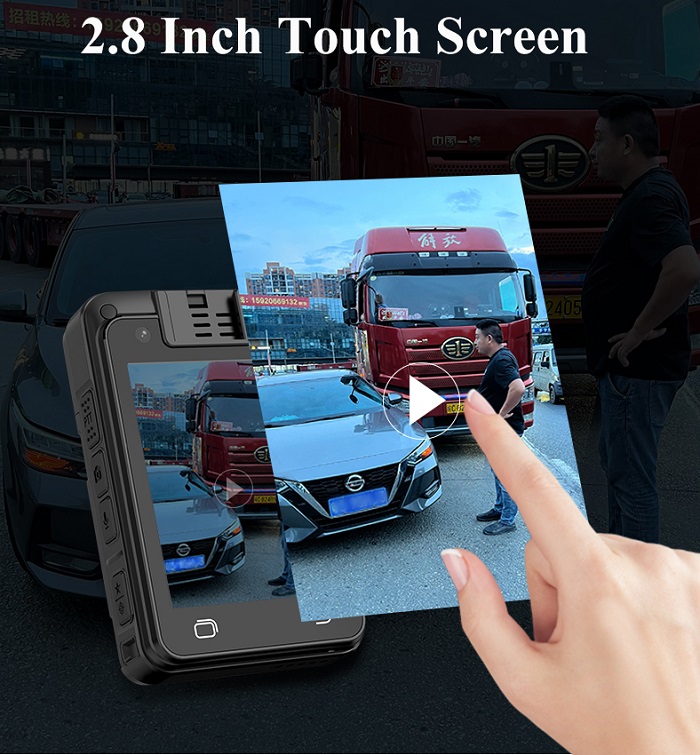

- 2.8 "touch screen, easy operation.

- Replacing the battery without power outage

- 12 hours continuous video recording @1080P30FPSBuilt-in


Parameters Chips MTK MT6769  12um 8-core processor  2.0G low-consumption processor
System Android 12 Smart System
Caemra GC2385+SC530AI+0V4689  Front camera FF(Option),Rear Camera AF(option)
RAM  2+16GB Standard;Max support 4+256GB;
TF card Max support 512GB
Power 5V2A Adapter Fast charge.
Touch Screen Yes
Infrare light 4-lights 850nm ,Support:3M 70% vision area cover ,3M face recognition support
LED 2 pcs
Screen Touch 2.8 Inch Resolution :480*640
Speaker 2613,2W  IP68
MIc Dual Mic phone(Silicon)
light sensor support infrared light switch on/off auto.
Motion Sensor Support:G-sensor ,Gyroscope
Compass support
Virate rada Support
NFC Option / antenna
4G wireless
(GSM)

4G wireless network
2G:GSM(B2/3/5/8)、
3G:WCDMA(B1/5/8)、
4G:TDD(38/39/40/41)、FDD(B1/2/3/4/5/7/8/20/28)

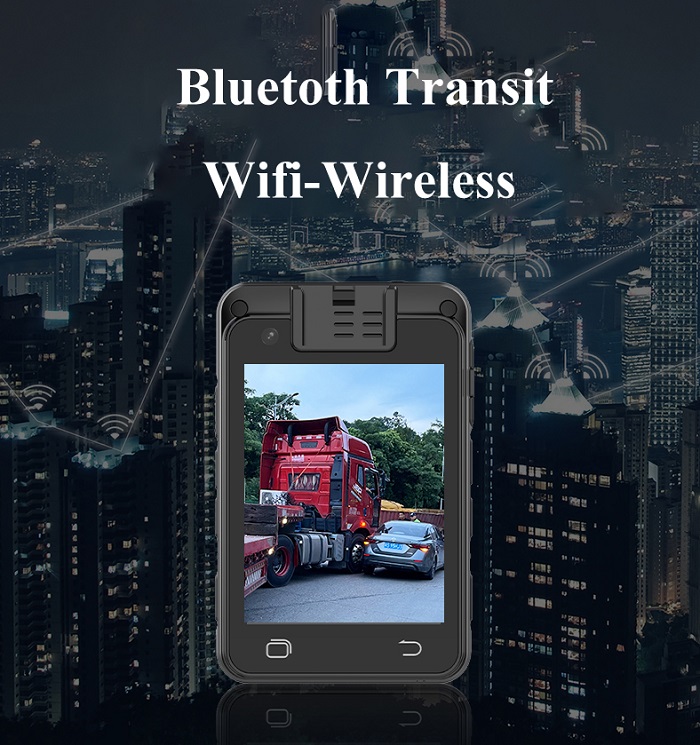

WIFI WIFI2.4,WIFI5.8 a/b/g/n/ac
Bluetooth BT5
GPS GPS,A-GPS,GLONASS,Beidou,Galileo
USB interface TYPE-C USB2.0
Earphone TYPE-C
Dock port TYPE-C USB,Backup battery
External Camera Max 1080P USB
Weight Net Weight 188g
Dimension size≤92mm*72mm*24mm
Drop Test 2M
Clip yes
Battery  Built-in 60mAh / Main battery Replaceable 3050mah
Video Shutter E-shutter
Cluster (APP)
Camera Distortion < 20%  (Option <9%)
Focus 1.0m- infinite
DigitalZoom Max 24X
White Balance Auto
Photo Resotuion Max 54M
Photo format JPEG
Video Dimension MAx 2K(2560*1440) 30FPS
Pre/Post-record Pre-record 1080P 30FPS Max 30S;Post-record setting (APP)
Snapshot yes
Compress format H.264/H.265 (option)
video format MP4

Other functions
Power on <30S
LED-Lighting LED White light auxillary
video playback support
files Marked  support
Watermark support( year, month,day,hour,minute, second)
Details ID Device Series number + Police ID
Voice report support  TTS
vocie control Chinese lanuage only
Press-key voice <1s
Motion Detection support
GPS GPS Show up in diaplay
Face recognition & License plate Option
Group PTT Support Group PTT/ Terminal to Termianl
Language Chinese/english
U-Disk HardDrive :connect to computer and via PC software to entern U-Disk;Non-HardDisk:connect to computer ,enter U-Disk directly
Software Upgrade  OTA upgrade firmware or USB
External Camera Max 1080P USB
Battery Battery  Replacebale :3050mAh Volt:3.8V(high/low temperature),low temperature -30℃ 1080P working >4 hours
Bulit-in battery 60mAh(10C),Volt 3.7V,5min
Charging Adapter/PC-USB/ Vehicle-USB
Charging time < 3 hours
Repeat charging time > 500 times
lifetime working 11 hours,Live video >7 hours
Standby time >300 hours
Screen go-off time Default 30s
Low temperature bellow zero 30℃
Accessories Clip 1 pcs
Cable 1 pcs TYPE C USB2.0
Charger 5V/2A;
Manual 1 pcs
Quality Cert 1 pcs
Box 1 pcs
working environment working temperature -30~55℃
humidity 40%~80%
storage temperature -40~60℃
Storage humidity 63%(30℃)
