OX-MD268 8CH 4G WIFI GPS MDVR

Brand OXIANG
Model OX-MD268
Description
8CH 4G WIFI GPS MDVR...

Detail

8CH 4G WIFI GPS SD+Hard disk

Including cmsv6 platform software；

1.Die casting structure, industrial design, stable and reliable, easy to install

2.Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 8 channels.

3.Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection

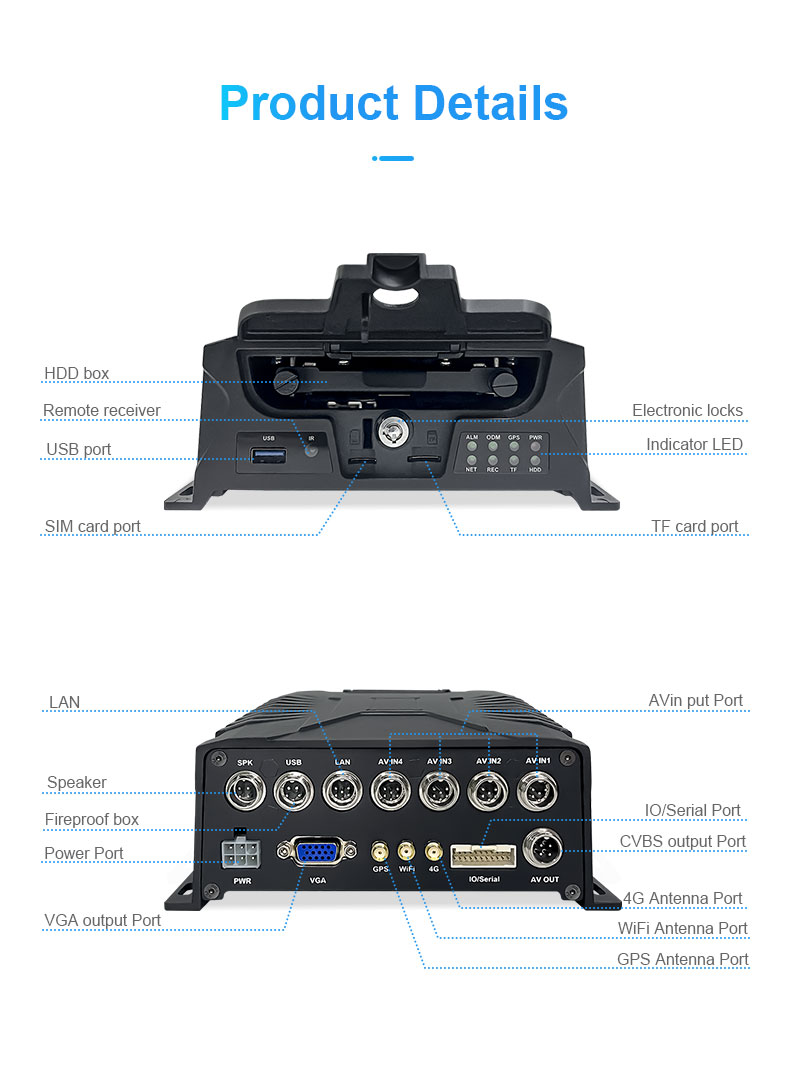

4.Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance

5.Support 8 channels of video and audio input, frame rate and image quality are adjustable

6.Support 1x2.5inch HDD/SSD +1xTF Card Storage(without Hard disk and TF card)

7.Built-in Farad capacitor. The video content has power-off protection function

8.Support video loss alarm function

9.Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself

10.Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc

11.Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.

12.Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos

13.Support 8 x IO alarm input, 2 x IO alarm output

14.Support 2 x RS232 and 1 x RS485

15.Insert the intercom handle for two-way communication between the platform and the device

16.Support pulse vehicle speed. Optional

17.Support 4G, WIFI,GPS, LAN(RJ45)

Item		Parameters
OS		Embedded Linux
System language		Chinese/English/Portuguese/Spanish/Russian/Vietnamese/Mongolian/Thai/Pakistani/French/Korean/Hindi/other(customizable)
Video compression format		H.265/H.264 compression format
OSD		Character superposition function, support time and date, vehicle ID and other information image superposition
GUI	graphic interface	System parameters can be set through external display and remote control operation
Video and recording system	Video input	8CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω
	Video output	1CH mixed video output, 1CH VGA output, 1.0Vp-p, 75Ω
	Preview function	Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function
	Video resolution	8CH machine supports 1080N/720P/D1/CIF optional, and the maximum can support 4 channels 1080P
	Record mode	Default automatic recording, support ACC recording, manual recording, alarm recording, etc.
Audio	Audio input	8CH，aviation plug
	Audio output	1CH，aviation plug
	Format	G.711a compression format, Rate 40KB/s
Alarm	I/O input	8CH I/O inputs. Can be connected to door magnetic sensors, left/right/reverse signals.
	I/O Output	2CH I/O output. Can connect external devices such as relays (oil and electricity cut-off), sound and light alarms, etc
Serial Port	RS233	2 x RS232
	RS485	1 x RS485
Power output	12V	Power external devices, such as fuel sensors, temperature sensors, etc
	5V	Power peripheral devices, such as RFID card readers
Network	4G	Support built-in 4G function
	WiFi	Spport WiFi function
	Wired	Support wired network
Positioning		Support built-in GPS/BD(GPS/GLONASS) module
USB		Support USB interface. Insert a USB flash drive to backup video or upgrade firmware
Sensor		Support G-SENSOR acceleration sensor
Intercom		SPK interface. Platform and device intercom, or connect speakers
Pulse speed		Optional
Video storage	HDD/SSD	Support 1x2.5inch HDD/SSD, loop recording
	TF Card	Support 1xTF card, loop recording
	Fireproof box	External fireproof box, disaster recovery video. Optional
Video playback	Video search	Search for recording video files by recording time, recording mode, etc.
	Playback	Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional
upgrade	Firmware upgrade	Support Hard disk and TF Card Upgrade, Support Network upgrade
Power	Power management	Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection;Support timing power on/off , delayed power on/off function
	Input voltage	DC:8 ~ 36V
	Consumption	Normal work maximum：5W，standby：0.5W
working environment	temperature	-20℃ to +70℃
	humidity	20% to 80%
Safety	Password access	Two-level management of user password and administrator password
Other	Size	168(L) x143(W) x 56(H)mm
