OX-MD9208 8CH ADAS&DMSX&BSD&3 Channel Passenger Count MDVR
- Brand OXIANG
- Model OX-MD9208
- Description
8CH 4G WIFI GPS MDVR.....
8CH ADAS&DMSX&BSD&3 Channel Passenger Count MDVR
Including cmsv6 platform software；

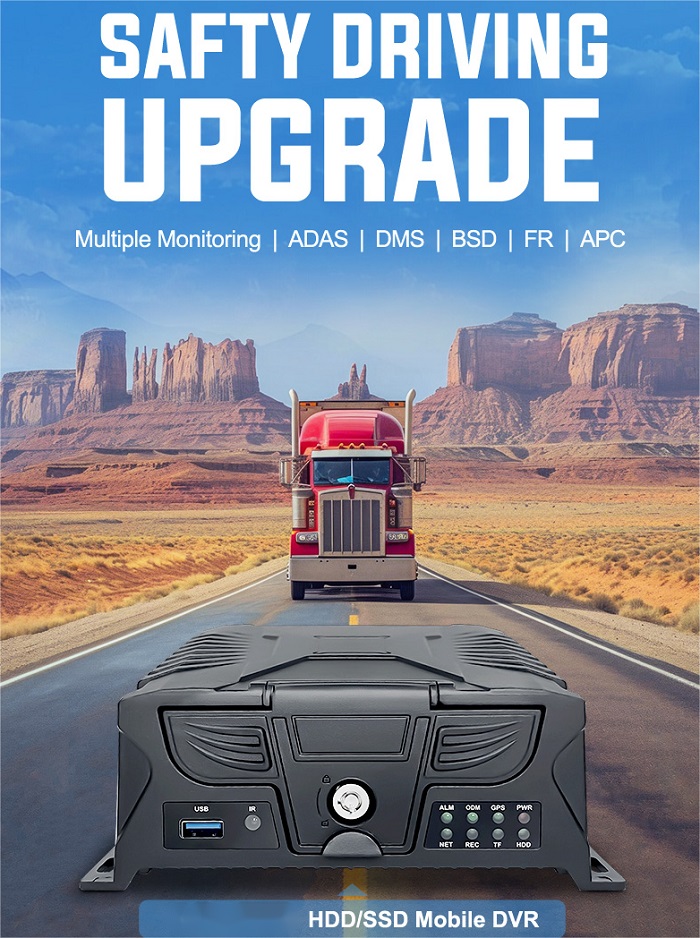

Including ADAS, DMS, BSD,Passenger Countand FR algorithms
1.Industrial design, stable and reliable, easy to install
2.Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 8 channels of 1080P 15fps.
3.Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
4.Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
5.Support 8 channels of video and audio input, frame rate and image quality are adjustable
6.Support 1x2.5inch HDD/SSD +1x512GB SD Card Storage
7.Built-in Farad capacitor. The video content has power-off protection function
8.Support video loss alarm function
9.Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
10.Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc.
11.Support SD card and U disk to upgrade firmware, support network remote firmware upgrade.
12.Support 8 x IO alarm input, 2 x IO alarm output
13.Support 2 x RS232 and 1 x RS485 interface
14.Support 4G, GPS
15.support WiFi function
16.Optional AI function(ADAS DSM Face recognition BSD)
17.Maximum support for 3 channel passenger counts
Note: Up to 5 AI functions can be supported simultaneously, with 1 AI function per channel for BSD cameras and 1 AI function per channel for passenger cameras
Item |
Parameters |
|
OS |
Embedded Linux |
|
System language |
English, Spanish, Portuguese, Vietnamese, Russian, Turkish，Chinese, other(customizable) |
|
Video compression format |
H.265/H.264 compression format |
|
OSD |
Character superposition function, support time and date, vehicle ID and other information image superposition |
|
DSMX |

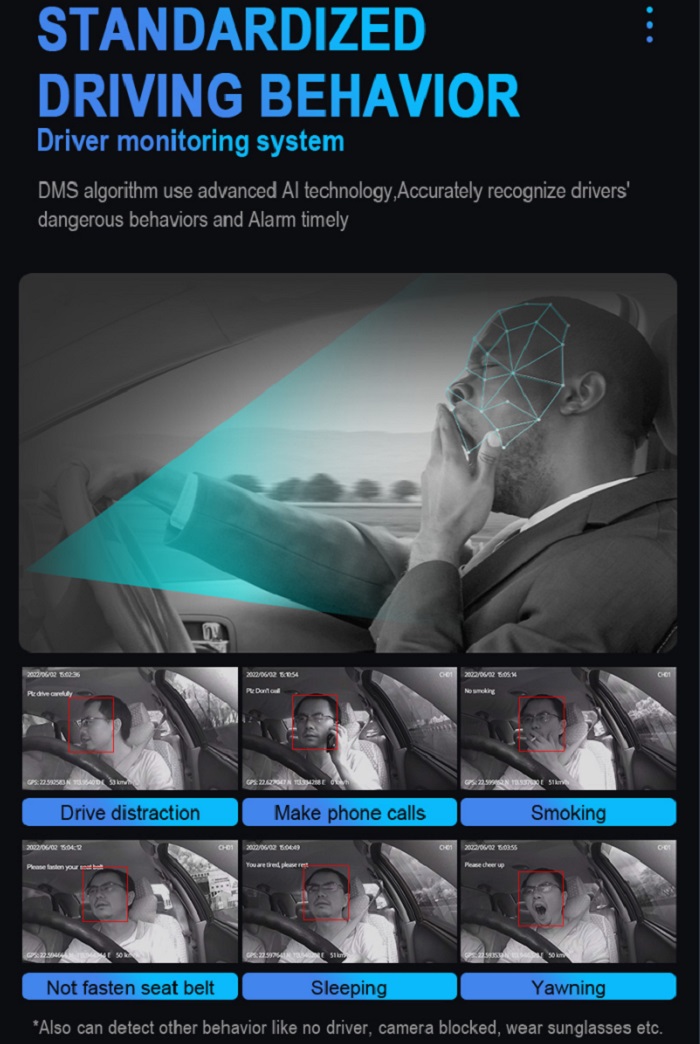

Seat belts, Smoking, Phonecall, Yawn, Eyes close, Distracted driving, Abnormal driver, Video occlusion, Sunglasses identification |
|
FR |
Face recognition |
|
ADAS |

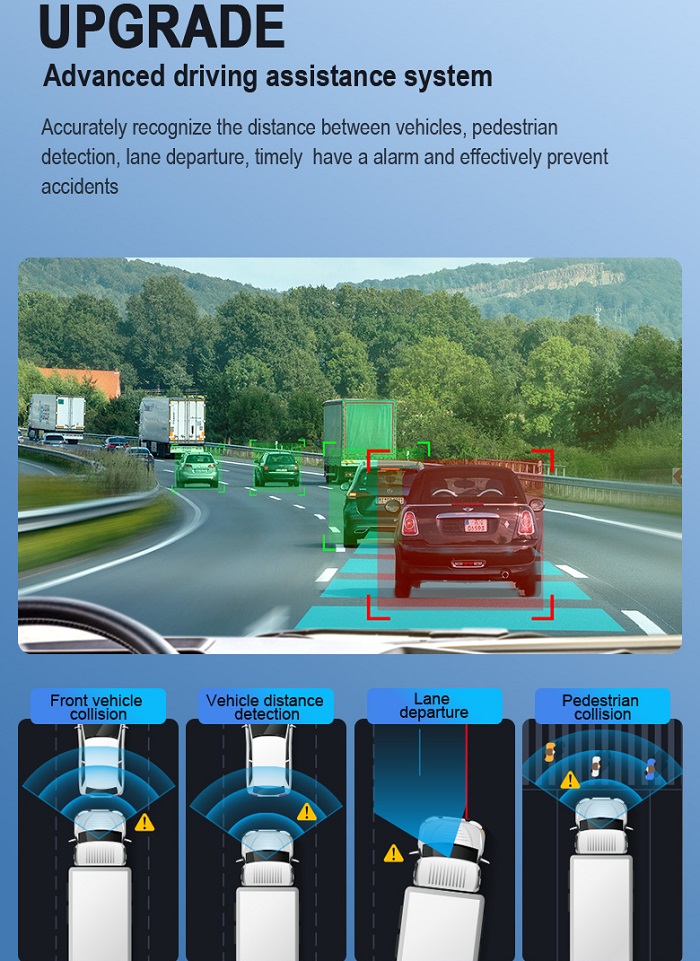

FCW, LDW, PCW, Vehicle too close |
|
BSD |

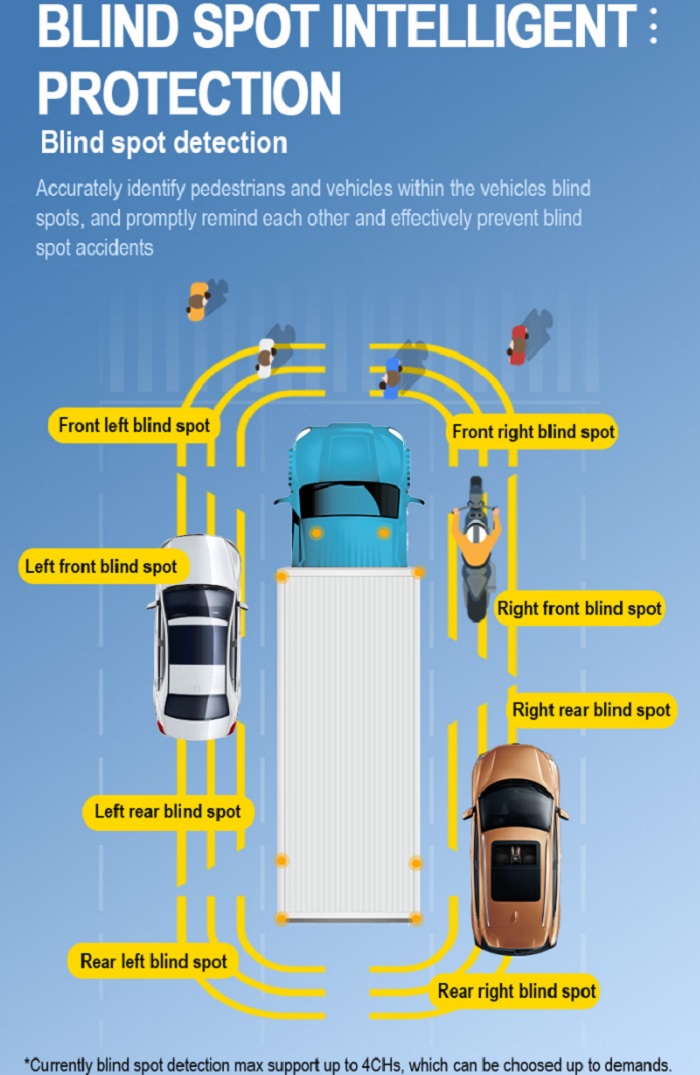

Right front, left front, right, left, front. 5 choose 4 |
|
Passenger Count |
Maximum support for 3 channel passenger counts |
|
GUI |
graphic interface |
System parameters can be set through external display and remote control operation |
Video and recording system |
Video input |
8CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω |
|
Video output |
1CH mixed video output, 1CH VGA output, 1.0Vp-p, 75Ω |
|
Preview function |
Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function |
|
Video resolution |
8CH machine supports 1080P/720P/D1/CIF optional, and the maximum can support 8 channels 1080P 15fps |
|
Record mode |
Default automatic recording, support ACC recording, manual recording, alarm recording, etc. |
Audio |
Audio input |
8CH，aviation plug |
|
Audio output |
1CH，aviation plug |
|
Format |
G.711a compression format, Rate 40KB/s |
Alarm |
I/O input |
8CH I/O inputs, with alarm linkage function |
|
I/O Output |
2CH I/O output |
Serial Port |
RS233 |
2 x RS232 |
|
RS485 |
1 x RS485 |
Network |
4G |
Support built-in 4G function |
|
WiFi |
BN9208-G6 support WiFi function |
Positioning |
Support built-in GPS/BD(GPS/GLONASS) module |
|
USB |
Support 1 x USB interface |
|
Sensor |
Support G-SENSOR acceleration sensor |
|
Video storage |
HDD/SSD |
Support 1x2.5inch HDD/SSD, loop recording |
|
SD Card |
Maximum support 1x512G SD card, loop recording |
|
File format |
H.265/H.264 |
Video playback |
Video search |
Search for recording video files by recording time, recording mode, etc. |
|
Playback |
Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional |
upgrade |
Firmware upgrade |
Support Hard disk and SD Card Upgrade, Support Network upgrade |
Power |
Power management |
Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection;Support timing power on/off , delayed power on/off function |
|
Input voltage |
DC:8 ~ 36V |
|
Consumption |
Normal work maximum：5W，standby：0.5W |
working environment |
temperature |
-20℃ to +70℃ |
|
humidity |
20% to 80% |
Safety |
Password access |
Two-level management of user password and administrator password |
Other |
Size： |
168(L) x143(W) x 56(H)mm |
