OX-DS2 20 Ports 21.5-inches Wall mounted docking station

Brand OXIANG
Model OX-DS2
Description
Docking Staion, Police DVR,Body Camera,Police Camera,Polic Body Worn DVR,OUXIANG INTERNATIONAL LIMIT...

Detail

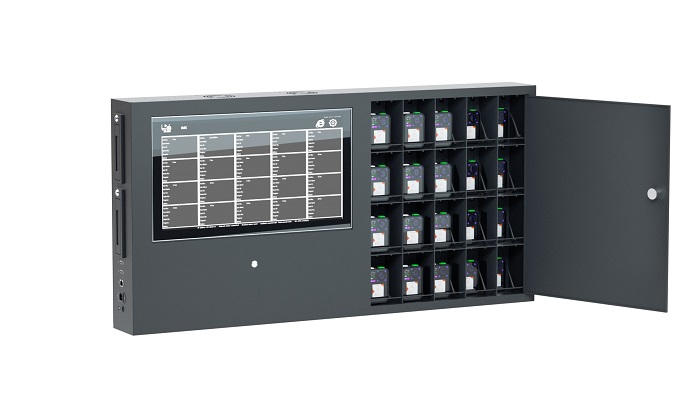

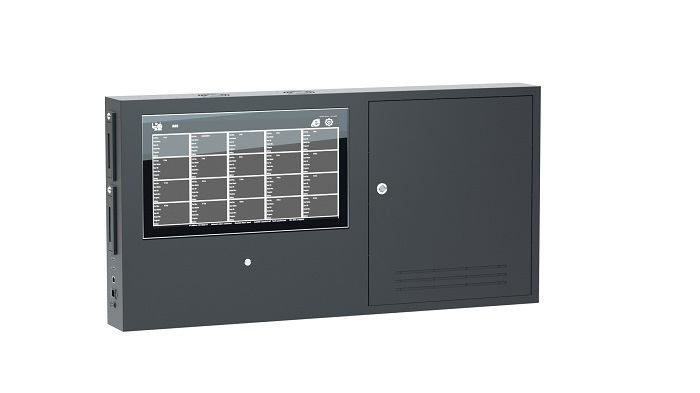

20 Ports 21.5-inches Wall mounted docking station with management software

1: 21.5-inches touch screen(1920*1080)

2:CPU:G3250 dual core3.2Ghz;4G DDR 1600/1333/1066 MHz, (8G optional);SSD:60G

3: 4TB hard drive(can expand to 16TB)

4:Built-in windows system

5:data synchronously and automatically

6:Automatic synchronization charge

7:Automatic copy and empty the data from law enforcement recorder

8:USB3.0/USB2.0

9:Support WiFi

10:Supporting remote downloading of recorder data

11: Output terminal own double protection; protect the device, support overload power voltage and instant current protection function. Effective protect the device and collection station.

12: Full metal frame, durable and concise appearance, unleaded painting.The collection station pedestal own 4 foot pads, can be stably placed on any platform.

13: Support hotplug without driver, easy operating and carrying. Realize unattended operating and quickly uploading

Product size:100*50*12cm,N.W/G.W:25kgs/40kgs

Docking Station DS2
Features	l B/S Structure、Support distributed Download l Remote Data Download l Automatically data upload and Delete l Automatically Power l All metal enclosure to prevent strong electric field and magnetic field interference l 7/24/365 l Support Web browser access and parameter configuration l Support SDK
Parameters
System	System	Win7 64 bit（optional win10 64 bit）
	Data Base	Mysql
	Software	Law enforcement electronic evidence management system
Hardware	LCD	21.5 in LCD，Physical Resolution 1920*1080
	Touch parts	Multi-point Capacitive touch screen
	Chip-sets	G3250 Intel chip-sets，Optional Intel processor
	Memory Capacity	4G DDR 1600/1333/1066 MHz，（Optional8G）
	System Disk	60G SSD
	Storage	4T ，（Optional 2T、2T~16T Storage）
	Interface	Mini/Micro/typeC- USB * Standard 20 ports
Application	Management	register and bind management
		Support video upload break-off
		Data uploading display lcd
		device match LCD
		Ports custom-made
		Standard public security interface regulation
	Data process	Video files uncompressed, raw image quality
		Auto-classification（files types ，resolution or date）
		Automatically upload designated server ip
		upload configuration（by time，by position，files type，broadband etc.）
		Calibration date，Automatically clear data
	Storage management	Storage （route，document types ，Zip etc.）
		Space management （clear，Early-warning，Expanded，Back-up etc.）
		Storage display
		Periodic Database Backup
		distribute download , review
	Data security	Unauthorized users have no data operation rights
	Data synchronously	Active + passive interaction with management platform, two-way database synchronization fault tolerance mechanism
	RMS	infinite classification recursion
	Internal communication	Inbuilt web real-time communication tool
	Evidence management	Key evidence sharing , judgement
	Performance examination	Employee , UPAS
	Log	Operation history
Host interface	Power on/off	*1
	Network interface	RJ45*1
	Data interface	USB-A Female *2
Physical features	Power	AC IN：100~240V;50~60Hz Over-voltage protection, over-current protection, over-power protection, short-circuit protection
	Power consumption	≤400W
	Working temperature	-20℃~60℃
	working humidity	＜90%
	Size (mm)	W1000mmH 500mmD120mm
	Net weight	Approx. 25kg
	Gross weight	Approx. 40kg（Wooden packing）
Warranty	Shell material	metal shell, anti static, anti magnetic field, anti strong electric field interference
	CCC	Chinese Compulsory Certification（3C）
	EP( environment protection)	All components and packaging accessories conform to international environmental standards
