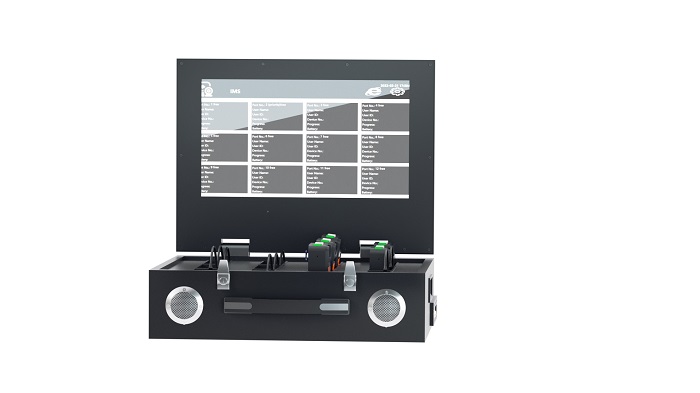

OX-DS3 17.3-inches 8 Ports docking station

  • Brand   OXIANG
  • Model   OX-DS3
  • Description

    Docking Staion, Police DVR,Body Camera,Police Camera,Polic Body Worn DVR,OUXIANG INTERNATIONAL LIMIT...

Detail
17.3-inches 8 Ports docking station with management software
Mini / micro USB *8 Ports(optional 9、10、12、15、18、21 Ports)
1: 17.3-inches touch screen(1920*1080)
2:CPU:I5 Intel;8G DDR 1600/1333/1066 MHz;SSD:60G
3: 4TB hard drive(can expand to 32TB)
4:Built-in windows system
5:data synchronously and automatically
6:Automatic synchronization charge
7:Automatic copy and empty the data from law enforcement recorder
8:2*USB3.0/2*USB2.0
9:Support WiFi
10:Supporting remote downloading of recorder data
11: Output terminal own double protection; protect the device, support overload power voltage and instant current protection function. Effective protect the device and collection station.
12: Full metal frame, durable and concise appearance, unleaded painting.The collection station pedestal own 4 foot pads, can be stably placed on any platform.
13: Support hotplug without driver, easy operating and carrying. Realize unattended operating and quickly uploading

Product size:48*36*14.5cm,Carton Size:60*46*27cm(N.W/G.W:15kgs/17kgs)


Docking Station DS3

Features

B/S StructureSupport distributed Download

Remote Data Download

Automatically data upload and Delete

Automatically Power

All metal enclosure to prevent strong electric field and magnetic field interference

7/24/365

Support Web browser access and parameter configuration

Support SDK

Parameters

System

System

Win7 64 bitoptional win10 64 bit



Data Base

Mysql



Software

Law enforcement electronic evidence management system

Hardware

LCD

17.3in LCDPhysical Resolution 1920*1080



Touch parts

Multi-point Capacitive touch screen



Chip-sets

I5  Intel chip-setsOptional Intel processor



Memory Capacity

8G  DDR  1600/1333/1066 MHz



System Disk

60G SSD



Storage

4T ,(Optional 2T2T~16T Storage



Interface

Mini/Micro/typeC- USB * Standard 8 portsOptional 91012151821ports)

Application

Management

register and bind management





Support video upload break-off





Data uploading display lcd





device match LCD





Ports custom-made





Standard public security interface regulation



Data process

Video files uncompressed, raw image quality





Auto-classificationfiles types resolution or date





Automatically upload designated server ip





upload configurationby timeby positionfiles typebroadband etc.





Calibration dateAutomatically clear data



Storage management



Storage routedocument types Zip etc.





Space management clearEarly-warningExpandedBack-up etc.





Storage display





Periodic Database Backup





distribute download , review



Data security

Unauthorized users have no data operation rights



Data synchronously

Active + passive interaction with management platform, two-way database synchronization fault tolerance mechanism



RMS

infinite classification recursion



Internal communication

Inbuilt web real-time communication tool



Evidence management

Key evidence sharing , judgement



Performance examination

Employee , UPAS



Log

Operation history

Host interface

Power on/off

*1



Network interface

RJ45*1



Data interface

USB-A  Female *2

Physical features

Power

AC IN100~240V;50~60Hz Over-voltage protection, over-current protection, over-power protection, short-circuit protection



Power consumption

120W



Working temperature

 -20~60



working humidity

90%



Produce Size (mm)

W480mm*H 145mm*D360mm



Packing  Size (mm)

W595mm*H 270mm*D455mm



Net weight

Approx. 15kg



Gross weight

Approx. 17kgCardboard

Warranty

Shell material

metal shell, anti static, anti magnetic field, anti strong electric field interference



CCC

Chinese Compulsory Certification3C



EP( environment protection)

All components and packaging accessories conform to international environmental standards
