OX-ZP530 5G Body Worn Camera
- Brand OXIANG
- Model OX-ZP530 -5G
- Description
5G 4G Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body...
Detail
full AI+5G global version body camera ,IP68,EIS,4lens+4K video,4+64GB
5G+AI body camera BM530, built-on MTK 5G SoC MT685X, 4+64GB, dual SIM, full AI powered, android 10.0, 2.4inch LCD, 98*64*28mm, 190g.
5G NR, N1/N3/N28/N77/N78/N79/N41, SA mode supported.
4G LTE global: B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B26/B28
| Model | OX-ZP530 5G Body Worn Camera |
| Item | Description |
| System | Built on MTK octa(8) core chipset@2.0GHz,Android10, 4GB RAM +64GB ROM |
| Durability | Drop resistance 3m, -20¡æ~60¡æ |
| Protection | GB4208-2008 IP68 |
| Display | 3.1 inch TFT LCD(480x800), capacitive touch screen |
| FoV | Wide view angle with distortion correction,FoV diagonal 140, horizontal 120 |
| Video | 4lens, 2MP + (13MP+2MP+2MP)1920*1080, 3A, auto white balance, auto exposure, auto focus |
| Video encoder | Max: H.265/264@4K/2K, 2560X1440(30fps)£¬default, 1920¡Á1080@30fps |
| Recording format | .mkv/.mp4, pre&post recording 15s |
| Snapshot | Max: 24~40MP, JPG file, 4608*3456 |
| Shutter | Electrical shutter |
| Night vision | Auto switch, IRCUT, Infra-red >10m£¬High power LED, aluminum plate cooling£¬Laser positioning |
| audio | dual MIC, noise reduction |
| Position | Built-in GPS/BEIDOU |
| Networking | 4G FDD/TDD LET, 5-mode, WCDMA/TD-SCDMA£¬ 2G/GSM£¨Band2/3/5/8£© TD-SCDMA(Band34/39) WCDMA£¨Band1/2/5£© LTE-TDD(Band34/38/39/40/41) LTE-FDD(Bnad1/3/5/7/8/28AB) EVDO(BC0) 5G:N1/N3/N41/N77/N78/N79/N28AB |
| Built-in WiFi, dual band(2.4+5G), 802.11b/g/n/ac | |
| Remote live view/monitoring via wireless network, managed by large scale networking VMS software/Smarteye. |
|
| NFC | yes |
| LED | red&blue alert*1, tri-color LED*1 |
| Compass | Built-in compass |
| Data connection | type-C USB 3.0, BT4.0 |
| Charger | DC 5V, quick charger 9V/2A, adapter, USB cable |

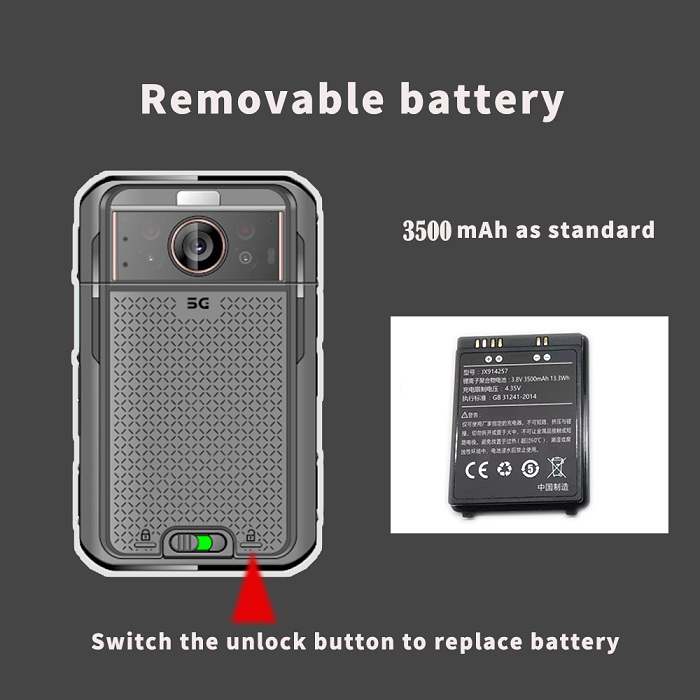

| Battery | li-battery, 3500mAh,charging time 3.5h, hot swap |
| Storage | built-in TF card default 32GB, max 512GB |
| dimension | 100mm(L)¡Á60mm(W)¡Á22mm(H) |
| Weight | 170g,IP68, 3m free-drop |
| VMS | large scale VMS platform software, SmartEye,free download from google cloud or dropbox |
