OX-ZP401-5G 4K Police Body Camera
- Brand OXIANG
- Model OX-ZP401-5G
- Description
5G Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body ca...

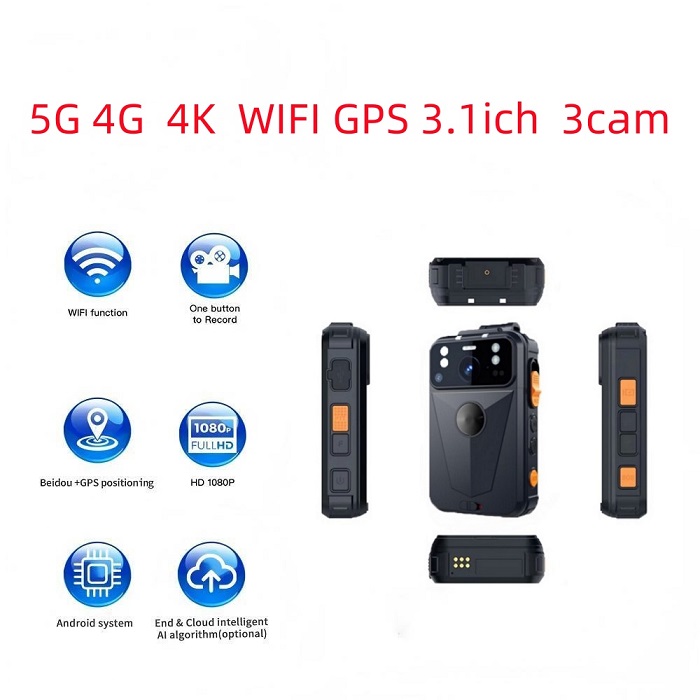

5G 4G WIFI GPS 4K 3.1 inches 3 Camera
1.Android 13 system, MT6769 8 Cores CPU 64 bit, 2GHz. 12nm;
2.eMMc:4G + 64G(4+256 for optional)
3.H.265/H.264 Encoding compression , support dual stream;
4.Support 4K2176P,2K1440P,1080P,720P and other resolutions;
5. 3.1 inches HD touchscreen(480*800);Built-in 3pcs Camera

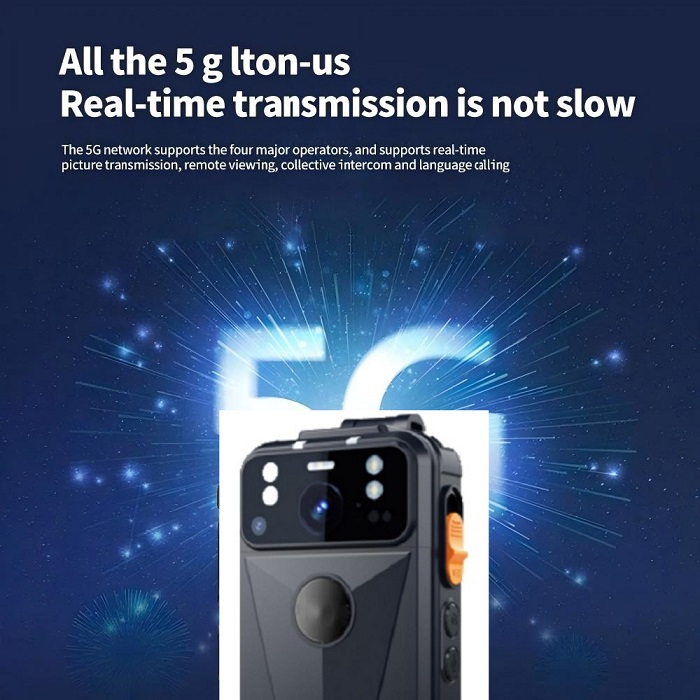

6.Built-in 5g,4G, WIFI, BT communication, GPS or Beidou positioning;

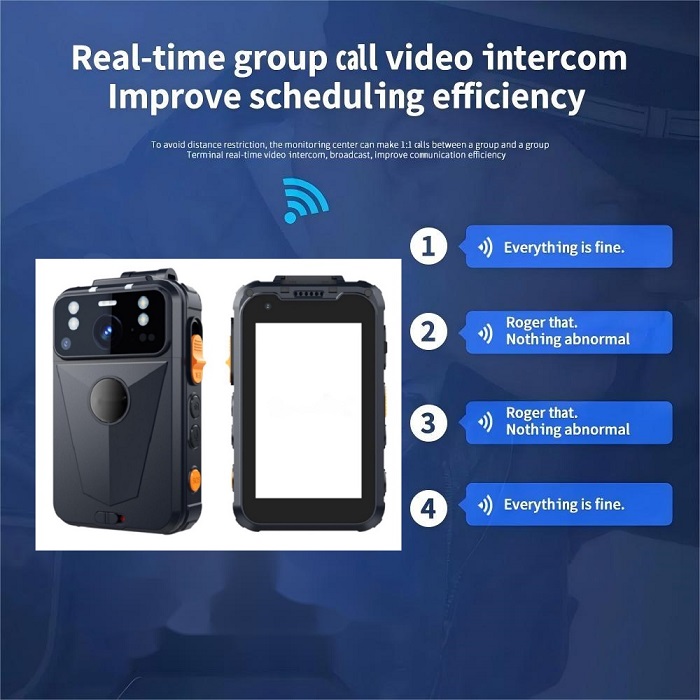

7.Support cluster voice dispatch, video call, file upload, central storage, etc.;
8.IP grade：IP67 ;
9.3400mAh removable polymer lithium battery, can record for 10 hours (1080P/30FPS);
10.TF card：Max support 512GB (With Standard 64GB TF Card)
11.WiFi：2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n
12. 5G： NR：N1/N28/N77/N78/N79/N41
13. 4G ：LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A；LTE TDD: B34/B38/B39/B40/B41
14.Size/Weight:96.7*58.3*23.3mm/177g
Hardware specification |
Model |
OX-ZP401-5G |
|
Operation system |
Android 13.0 |
|
Main Chip |
MT6877 8 Cores CPU 64 bit, 2GHz. 12nm |
|
eMMc |
4G + 64G eMMC(4+256 for optional) |
Main camera |
Pixels |
4MP |
|
Video Resolution |
3840×2176/30fps 4K 2560×1440/30fps 2K |
|
Video Format |
MP4 |
|
Video Compression |
H.264/H.265 |
|
Dual stream |
Support hardcoded dual stream |
|
Photo Format |
JPG, 48MP |
Secondary/rear camera |
Secondary Camera |
8MP |
|
Rear camera |
2MP |
Audio parameter |
Audio format |
AAC/G711/OPUS, MP3 |
|
Audio sampling rate |
48kHz |
|
Audio compression rate |
128kbps |
Network parameter |
Bluetooth |
Built-in |
|
Position |

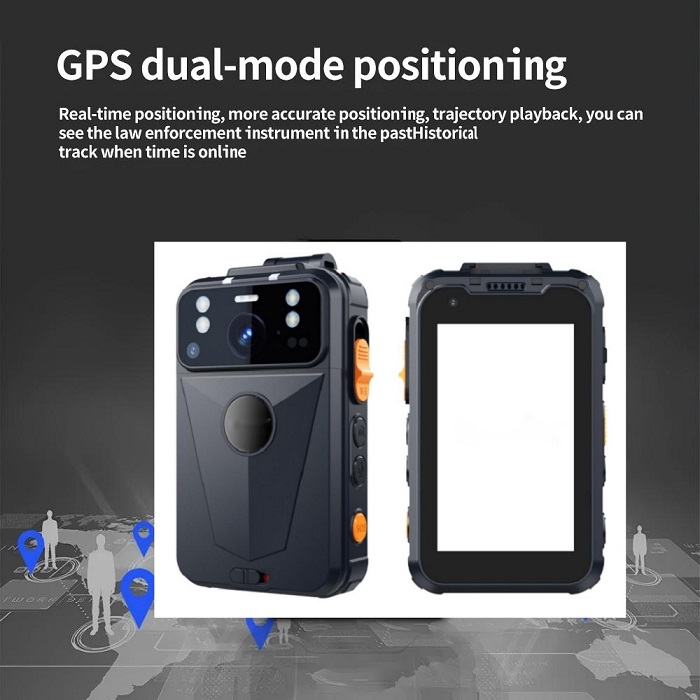

Support GPS/BDS/GLONASS(optional) |
|
WiFi |
2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n |
|

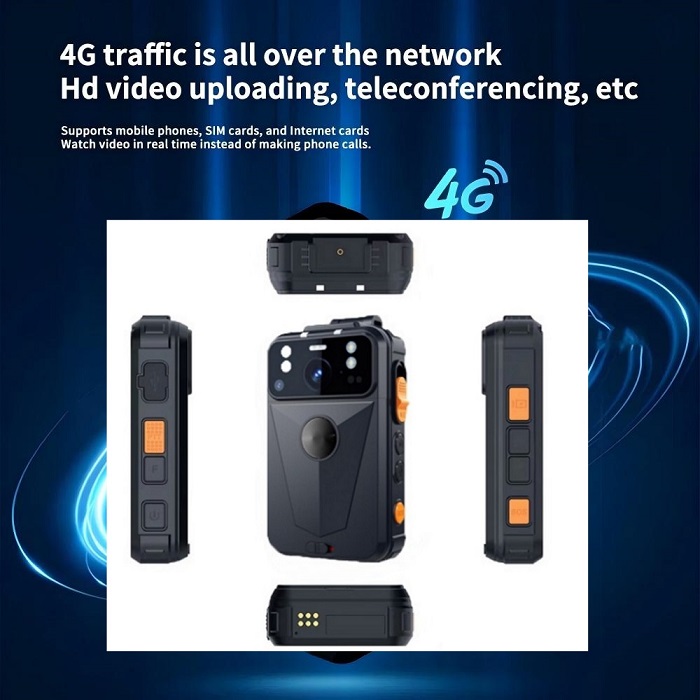

4G/5G |
5G: NR：N1/N28/N77/N78/N79/N41 4G:LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A |
|
|
4G:LTE TDD: B34/B38/B39/B40/B41 |
|
|
WCDMA: B1/B5/B8 |
Others |
Display |
3.1 inches HD touchscreen(480*800) |
|
SIM card |
Built-in, Nano card |
|
TF card |
Built-in, TF-Card/64GB( scalable to 512GB) |
|
G-Sensor |
Built-in |
|
NFC |
Support(optional) |
|
USB |
Type-C |
|
Flash light |
Built-in |
|
Laser light |
Support(optional) |
|
Red and blue warning lights |
Built-in |
|
IR night vision |
4 infrared lights, the recognition range can reach 3 meters for faces, and the detection range can reach 10 meters for human body |
|
Voltage |
3.8V |
|
Discharge voltage |
3V |
|
Charging voltage |
4.35V |
|
Microphone |
2 x MIC |
|
Audio Amplifier |
1.5W |
|
Side key |
Power/Photo/PTT/Video/Audio/ Snapshot/SOS/M key |
Battery parameter |
Battery capacity |
3400mAh, removable polymer lithium battery |
|
Continuous electricity system |
Built-in small battery, supports battery replacement without power failure |
|
Charging time |
5V/2A, the battery charging time should be less than or equal to 3h |
Environmental condition |
High temperature working time |
+55, 4h |
|
Low temperature working time |
-30, 6.5h |
|
Working temperature |
-20℃～+55℃ |
|
Working humidity |
40%-90% |
|
Storage temperature |
-40℃～+60℃ |
|
IP grade |
IP67 |
|
Drop test |
2M |
Dimensions |
96.7 x 58.3 x 23.3mm |
|
Weight |
177g(camera), 200g(camera+clip) |
|
