Model: OX-MS801 for WIFI;   OX-MS801G for 4G

WIFI/ 4G solar battery camera

* Digital zoom：Focus 10 times optical zoom

* Main control sensor 6MP: T40N+2063+2063

* 2.8mm wide angle: 180 °+6mm angle: 60 "4X digital zoom.

* 4+6pcs full-color night vision and infrared array LED night vision lights

* Built in microphone and speaker, two-way walkie talkie

* Support up to 12 meters of PIR detection range alarm recording to Micro SD card;

* Alarm mobile message push

* supports up to 128G micro SD cards.

* Support cloud storage

* 6+6W single product silicon solar panel

* Built in 3 18650 batteries with a maximum total capacity of 9600mAh

* Environment -20C~+60C (-4 ° C~+140 ° C), humidity 10%~80%

* APP: Icam+

Model：MS801/MS801G		Version	Band	WiFi	4G
Network	Wireless WiFi frequency	2.4 GHz	IEEE802.11b, 802.11g, 802.11n Draft	Support	N/A
		5.0 GHz	N/A	N/A	N/A
	4G nano SIM card	Southeast Asia	B1/B3/B5/B8/B34/B38/B39/B40/B41	N/A	Support
		Australia	B1/B2/B3/B4/B5/B7/B8/B28/B40/B66	N/A	Support
		Japan	B1/B3/B8/B18/B19/B26	N/A	Support
		America	B2/B4/B5/B12/B13/B25/B26	N/A	Support
		Europe	B1/B3/B5/B7/B8/B20	N/A	Support
Video	Master sensor	6MP	lngenic :T40N+2063+2063
	Resolution	Main stream: 2304x2592@15fps, Sub stream: 640x720@15fps
	Format	Compression format		H.265
		Video file format		MP4

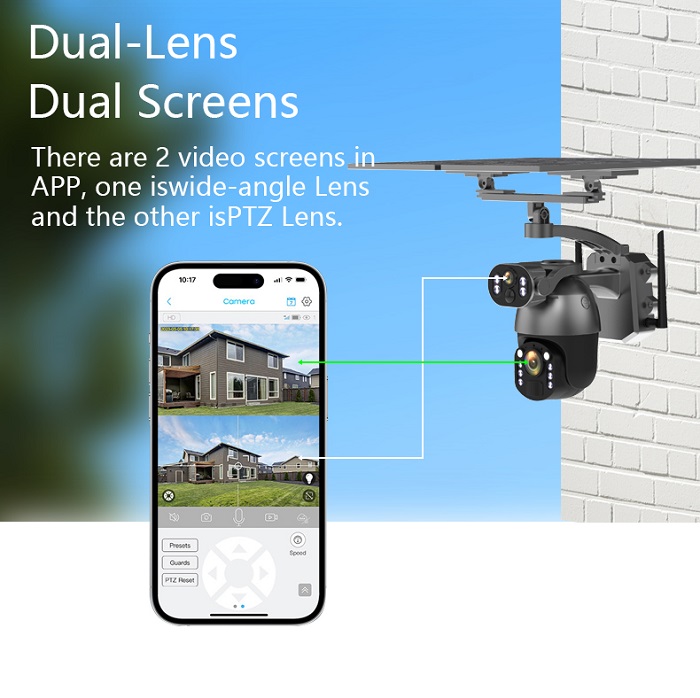

	Lens	2.8mm+6mm F2.0 , angle: 180+60 degrees. 10X digital zoom
	Digital zoom	Focus 10 times optical zoom
	Night vision	4+6pcs array LEDs, night vision Max 30m. Full-colorful day/night
Audio	Compression	G.726/AAC.  Audio code rate: 8Kbps, 16bit
	Input/Output	Built-in MIC and Speakers, support two way audio
Alarm	PIR motion detection	Support max 12 meters PIR detection range.
	Alarm linkage	Alarm  record videos to Micro SD card;Alarm mobile phone message push
Video storage	Memory card	Support up to 128G micro SD card. Support cloud storage
	Record	PIR alarm recording.
	Replay	Support App remote play and download the video
Power supply	Solar panels	12W monocrystalline silicon solar panel
	Battery	Built-in 3 pcs 18650 battery, total volume max 14400mAh
	Operating mode	Low power working mode
	Wake-up method	PIR alarm wake up, remote manual wake up
	Hibernation	When alarm end or remote connection disconnected.
	Power consumption	Sleeping stand-by power: 0.03W;  Working: 1.3W@days/3W@night
PTZ	Rotation angle	PTZ：Horizon Pan: 0°～355°, Vertical Tilt: 0°～120°； Bullet：Horizon Pan: 0°～110°，Vertical Tilt: 0°～90°；
	Spinning speed	PTZ：Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S Bullet：Manual adjustment
Other	Power input	DC5V 2A
	Environment	Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing
	Shell material	ABS fireproof plastic material, vandal-proof, waterproof level IP65
	Power cable	Type-c interface, extension cable 3 meters
