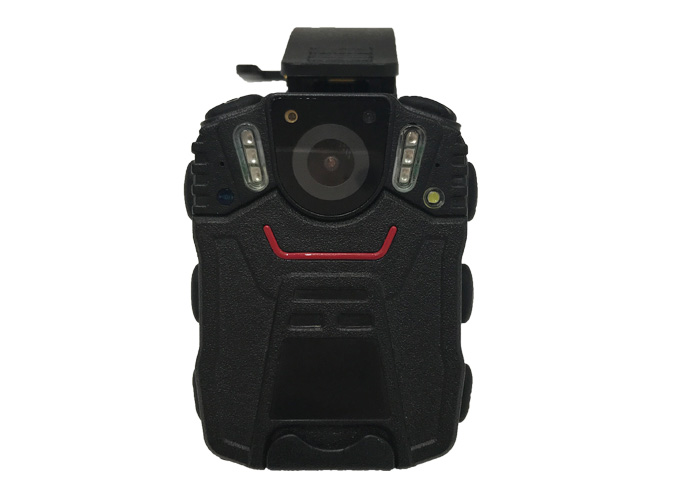

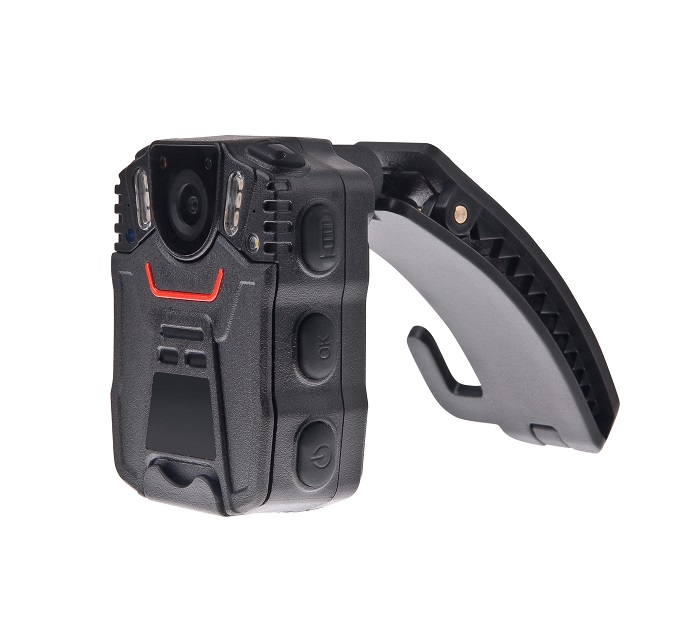

OX-ZM607W WIFI Mini Body Worn Camera

  • Brand   OXIANG
  • Model   OX-ZM607W
  • Description

    Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body Worn...

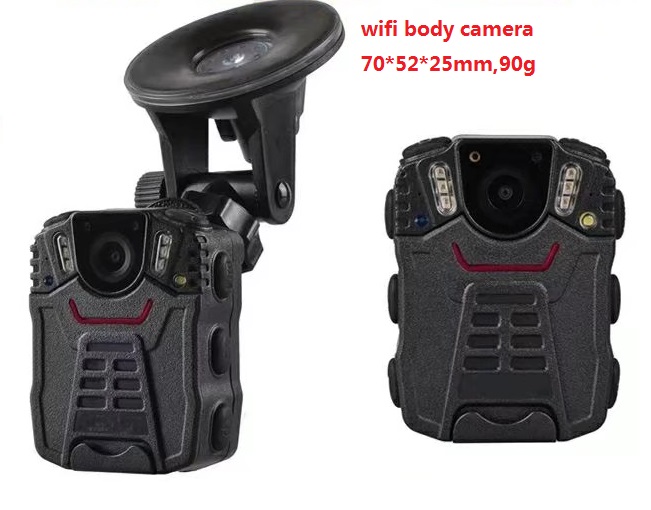

The world's first smallest size:70*52*25mm

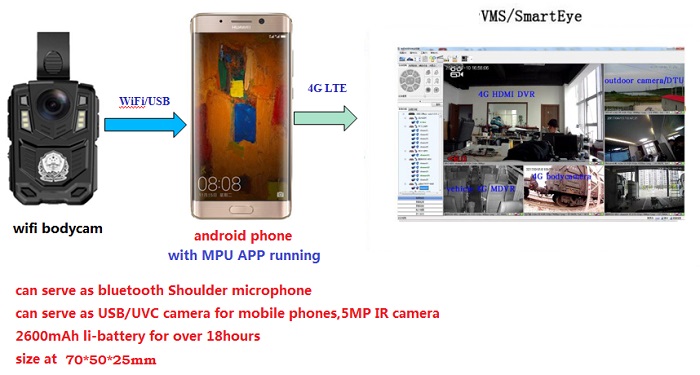

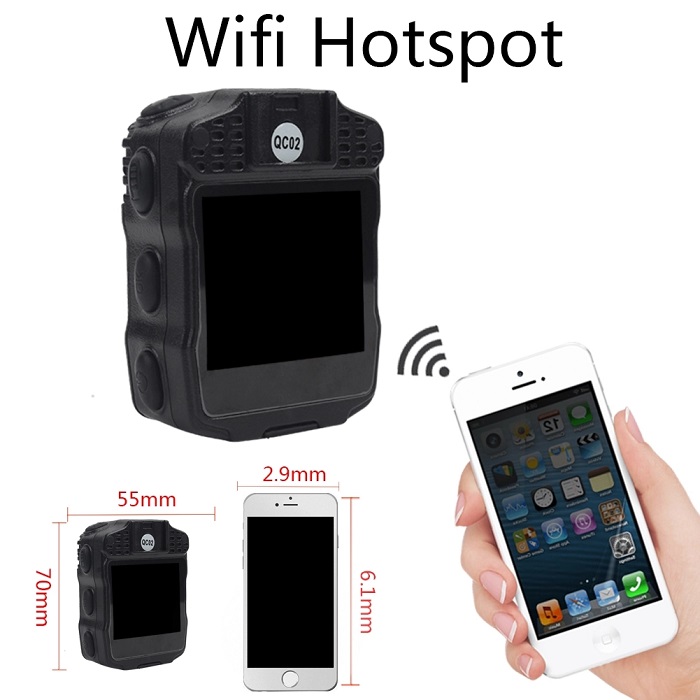

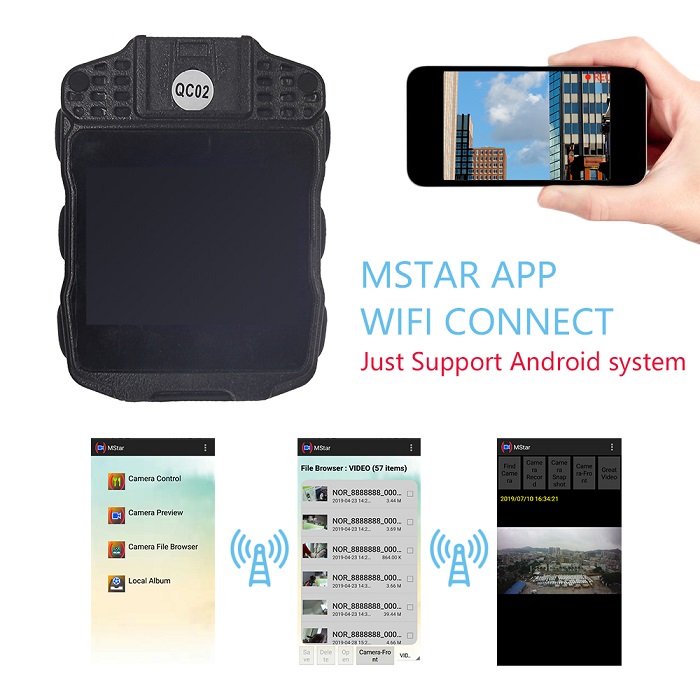

Built-in Wifi Function:(1)15meters live video streaming;(2)Take photo and Video,Video and  Photo playback;(3)Download photo and  Video to mobile phone or tablet from TF Card
Optional functions:
External HD mini button camera
Remote control (5-8M to take photo/record video or stop)
Backup Battery&charger box

Support Chinese, English ,Vietnamese and Russian

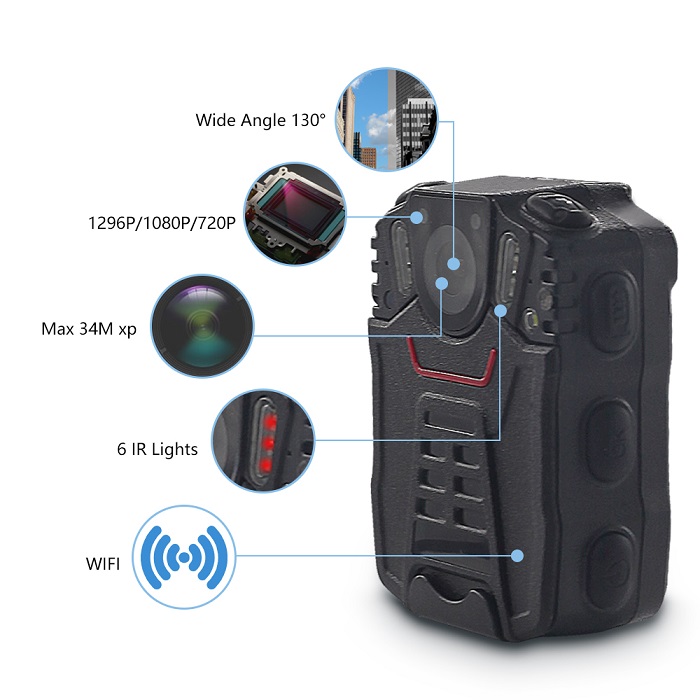

1. Support single or double recording video
2. 2 inch 16:9 TFT-LCD High-Resolution Color Display
3. Replaceable 1800mAh battery, 6 hours video recording(1920*1080 30P)
4. Video Resolution:  2304x1296 2K/30p, 2560*1080/30p,1920X1080/30P、1440*1080 /30p,1280*720/60P/30P
848*480/30P (default 1920*1080 30P)
5. 5.0 MP CMOS Sensor,JPEG,34M 23M、18M、13M、9M、6M、4M(default 4M:2688*1512)
6. 140° field of view
7.Support Storage Capacity:16G/32G/64G
8. 6 IR Light, Infrared 15 meter night vision with face detect

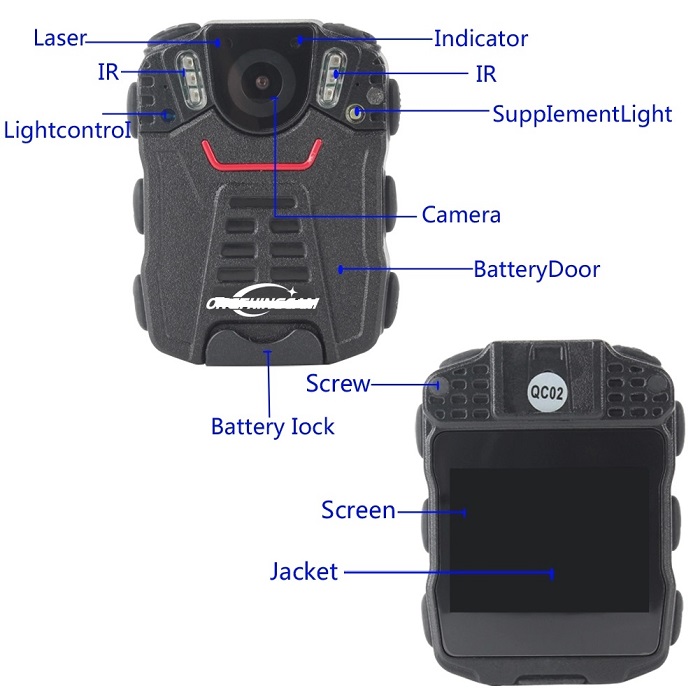

9.Auxiliary Light: one white flashlight and one red laser pointer
10. Water Mark User ID, Time and date Stamp  into Video and important Video tags
11. IP66 waterproof & 2 meters shock-proof
12.Motion Detector:at a distance of no more than 2M
13.Password protect:To set an administrator password to allow deletion via software.User can only view the videos but cannot delete it.
14. Auxiliary Light:one red laser pointer and Fill-in light
15.Support Burst Photo;Snap Shot,Auto take Photo and  Auto power off
16.Working Temperature:-30~70 degrees Celsius

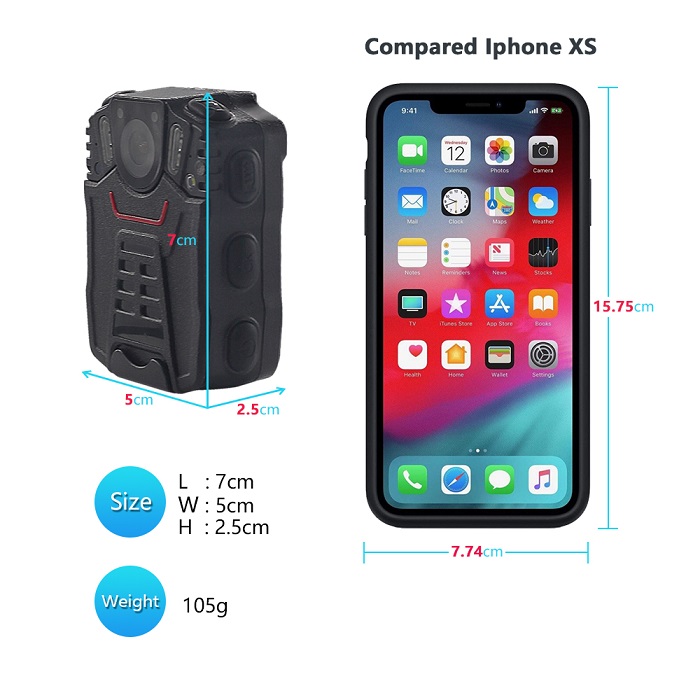

17. 70mm*52mm*25mm/105g

Product Quality Control

Parameters Discription



Support and optional(Display latitude and longitude information)

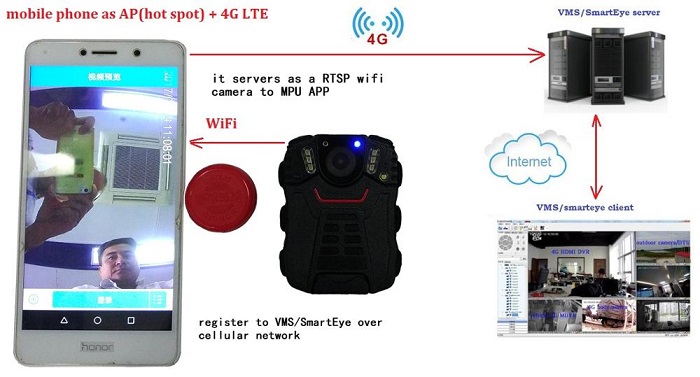

Wifi Function(15meters live video streaming)

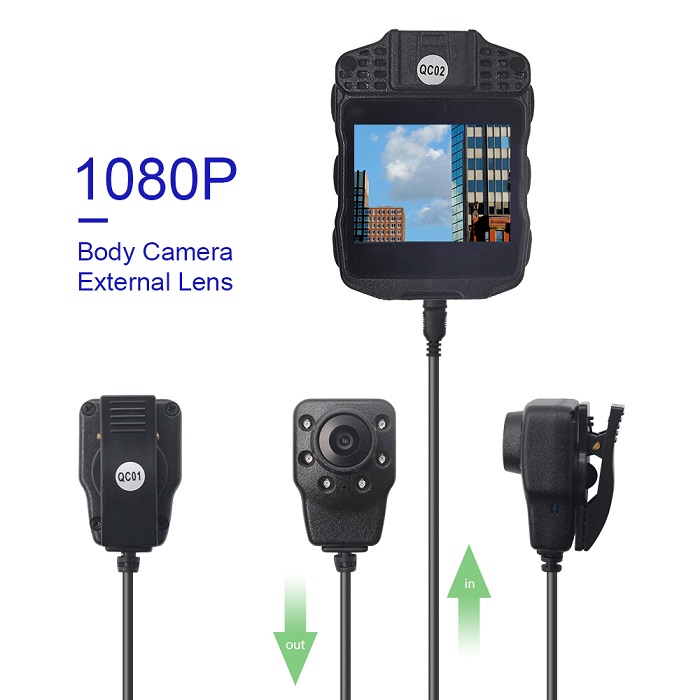

External Mini Camera

Video and camera resolution is the same as the main camera (optional)

Remote control

3-5M to take photo/record video or stop


Support Chinese, English Russian and Vietnamese


5MP CMOS,1/2.8" Color CMOS

LCD Screen

2 inch 16:9 TFT-LCD High-Resolution Color Display

Recording Angle

Wide Angle 120 degrees



Falling from height

Resistance to fall from a height of not less than 2M

Battey Capacity

Replaceable large capacity 1800Mah lithium battery

Battery Life

Continuous recording time NO LESS THAN:
11 hours (battery full charged, IR closed, Video resolution  848x480P 30fps)
8 hours (battery full charged, IR closed, Video resolution 1280x720P 30fps)
5 hours(battery full charged, IR closed, Video resolution 1920x1080P 30fps)

Storage Capacity


Recording Time for 32 GB Storage

Recording time until card get full NO LESS THAN:
5 hours 40 minutes (resolution 1920x1080P 30fps)
8 hours 30 minutes (resolution 1280x720P 30fps)
13 hours 40 minutes (resolution 848x480P 30fps)


Auto digital zoom, manual zoom 2~64 times

Video input

maximum support 2304*1296P

Video output

AV jack:compatible with NTSC/PAL

Video Transfer

USB 2.0

Video Format

MP4/ H.264

Video Resolution

2304x1296 2K/30p, 1920X1080/30P1280*720/60P1280*720/30P
848*480/30P (default 1080 30p)

Motion Detector

The ability to adjust the recording if the motion(at a distance of no more than 2M)(default: OFF)

Photo Format

JPEG,34M14M,12M8M3M(default 14M)

Burst Photo

3/5/10/20 Shot burst picture taking

Snap Shot

Capture Photos During Video Recording(default 1920*1080 30p)

Shutter time

1/2---1/2000  seconds


Support synchronous audio video, also can choose separately

Audio Microphone

High Quality Build-in Microphone.

Audio Format


Night Vision

Up to 15 Meters with Visible face image

IR Light

6 IR Light

white balance

Automatic white balance correction


Can Connect to Different Types of Radios

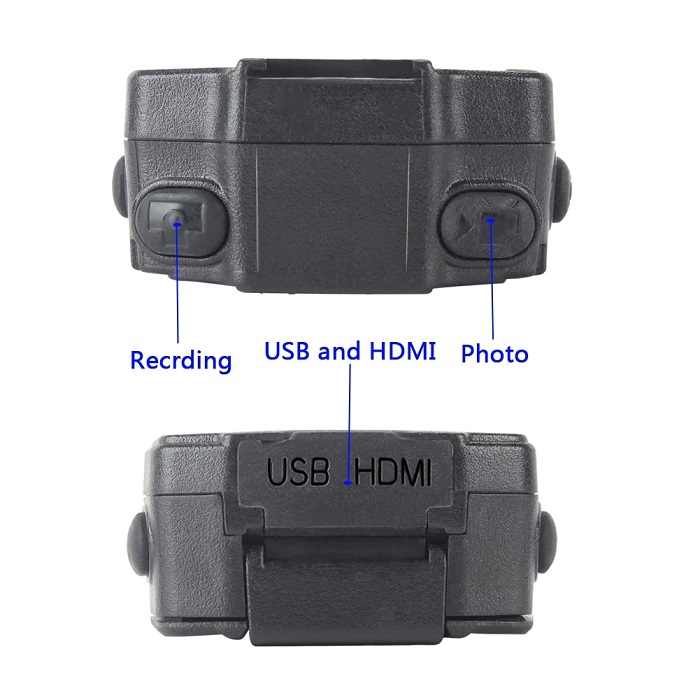

High-definition multimedia interface HDMI

Hd HDMI1.3 interface, the maximum support 1080 p output mode
Television output signals: NTSC/PAL;(optional)

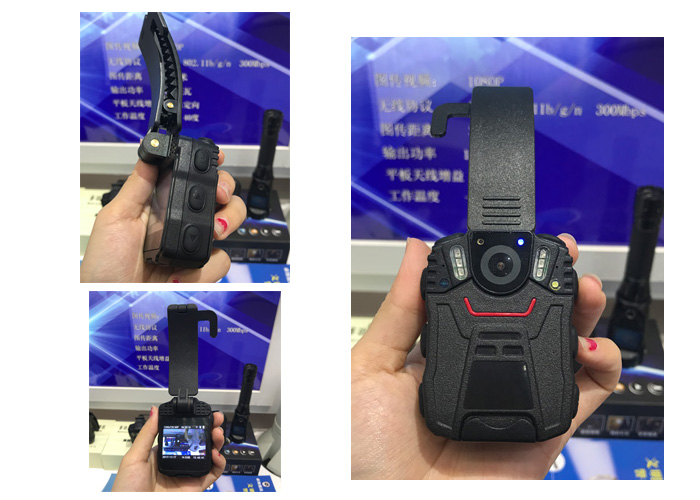

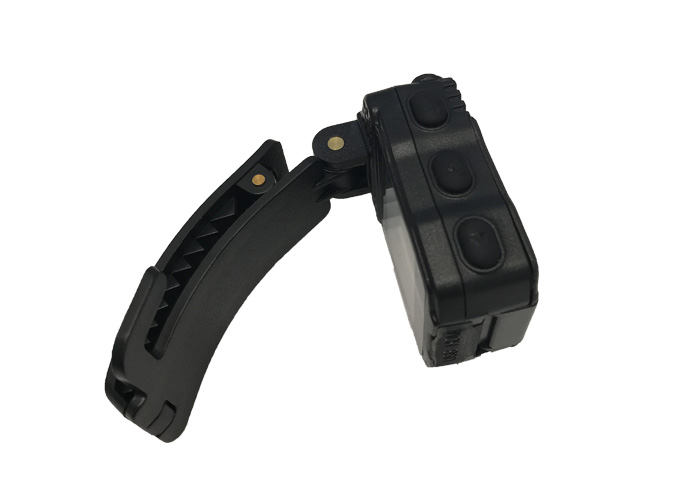

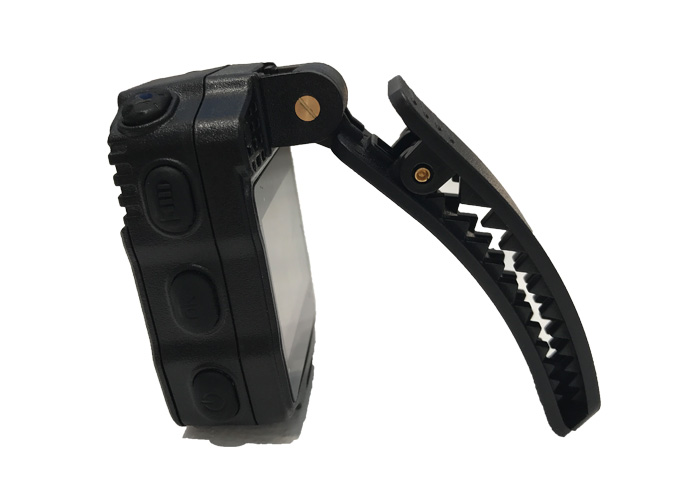

Back clip

High Quality Metal Clip with 360 degrees Rotation

Water Mark

User ID, Time and date Stamp,GPS coordinates Imbedded into Video

Video tags

In the process of recording, press the video mark key video call video automatically convert hd video and marked; The importance of the difference between video

One kye record

Long press video boot, law enforcement apparatus can direct access to video mode.
Long press audio boot, Law enforcement apparatus can direct access to recording mode.


Max 25 secondsdefault: Off


5 seconds/30 second/1 minutes/ 5 minutes(default: Off)

Unique ID number/unit

Include 5 digit device ID and 6 digit police ID

Password protect

To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.

Auto power off

5 minutes3minutes 1minutes  (default: 5minutes)



Working Temperature

-3070 degrees Celsius

Storage temperature

-4080 degrees Celsius

Working current

Power on about 220mA, video about 160mA  on off screen , IR on 350mA

Background management software

support background encryption, host computer software managementTo set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.

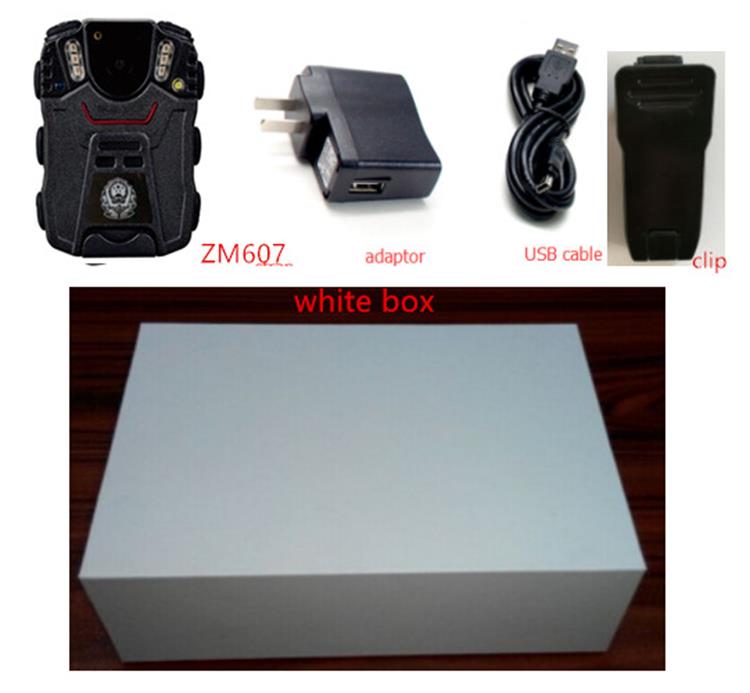

Standard Accessories

USB cable,USB Charger, Universal metal clip,Driver CD, Instruction Manual.


Completely portable color video and audio recorder is the must have camera for event recording. Keep a record of your interactions with suspects or criminals. No more worry about whether or not someone has told a different story or behaved poorly only to blame yo u. This miniature video cam with audio is the prefect device to cover your actions in the field or document a scene. Perfect for anyone who needs to capture video and audio on the go.

About us:

We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaged in Security Product Area. Within last more 10 years, specialized in R&D, Designed, manufacture &sell security product of all over the world.
Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.

Warranty &Return Policy

1. We provide 1 year warranty.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred. Please contact us before leaving any negative or neutral feedback.
4. We will work with you to solve any problems.
5.OEM/ODM is welcome.
