4G Smart Fire Helmet camera

Thermal imaging Pixel：320X240

Gas Detection：CO，O2，H2S，CH4

Display：2.4inch TFT

Operation system：Android 8.1

Live Streaming

4G/GPS/PTT

For fire protection Thermal lmaging

Thermal imaging parameters	Uncooled infrared focal plane detection
	Pixel：320X240
	Viewing angle: 45-50 degrees 6.52mm f1.18 Minimum focal length: 0.5 meters
	Thermal sensitivity: 0.1 degree
	Frame rate: 9Hz; wavelength range: 8-14um
	Measuring range: -10 +600 degrees
	Measuring accuracy：0.4-- 0.5°C （32--42°C），100°C above +-1%
	Display：2.4inch TFT
Gas Detection	CO，O2，H2S，CH4
System	Operation system：Android 8.1
	Processor：MTK6739 Quad-core ARM@Cortex-A53 MPCore
Visible Optics camera	Foucus range：0.5 Meters----Infinty
	Angle of camera：120 °
	Photo: 16MP JPEG format
Other details	Distance of night vision：The human faces can be seen at 10 Meters in a totally black environment
	Working time:  standby more than 25h,  camera  work more than 5h
	Waterproof：IP66
	Lithium battery ：3600mAh
Storage capacity	Support 16G/32G/64G/128G(With Standard 32GB TF Card)
Video coding resolution	1080P/720P   mp4 Format
Video FPS	1080P@30fps /720@30fps
Video bitrate	256kbps-8Mbps
WiFi	Support 802.11b/g protocol，2.4GHZ
4G function	TDD：B38 B39 B40 B41 FDD:B 1 3 5 8 4 7 28B
Bluetooth	BT4.0
Dimension/weight	(L*W*H) 115*60*45mm/About 180g （Helmet not included）
Working temperature	-30°C to +70°C
Real time play	support real-time 160 way data
Beidou/GPS	Same Smarteye screen can check up to 256  camera position tracking
Data upload	support D1 H.264 data upload
Wireless intercom:	Real time 4G network wireless intercom,Multi person meeting
4G upload:Real time uploaded function
Data of real time uploaded can be checked in the platform

 Fire rescue

Firefighters are unable to accurately determine the highest point of fire temperature at the point of fire occurrence, and cannot accurately determine the specific concentration of various toxic gases on site at the point of fire occurrence. Off site dispatch and command personnel cannot have real-time understanding of the specific situation inside the fire point and the environment in which each firefighter is located, resulting in the inability to cooperate and dispatch firefighters to work in a timely manner

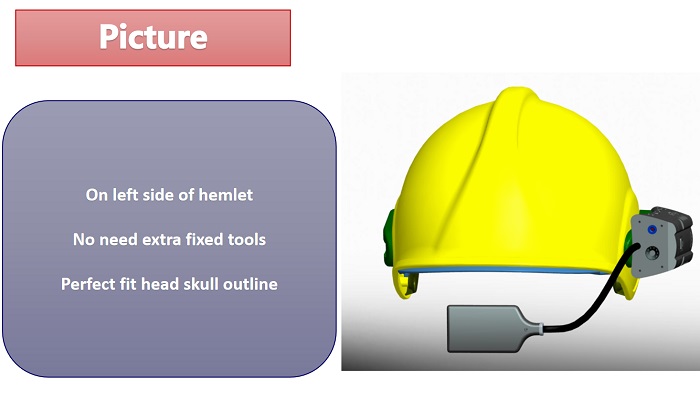

ZP650T intelligent fire helmet designed by oxiang. It integrates functions such as infrared thermal imaging, 1080P high-definition imaging, multi gas detection, bidirectional voice call, global positioning module, 4G transmission, and is comfortable and reliable to wear, enabling firefighters to easily empower. During use, real-time gas data and image information on site will be transmitted to the backend, and the backend will set the gas peak alarm value. Once the harmful gas reaches the level of harm, an alarm will be triggered immediately to monitor the safety status of each person on site. Real time display of thermal imaging and gas concentration. When the set harmful gas hazard value is reached, an alarm will be issued, and data will be transmitted to the rear command center through the network. The command center personnel will make correct judgments and commands for emergency situations. Ensuring the safety of rescue personnel, reducing people’s losses, and playing a role in safeguarding, effectively commanding, and reducing disasters for fire rescue.
