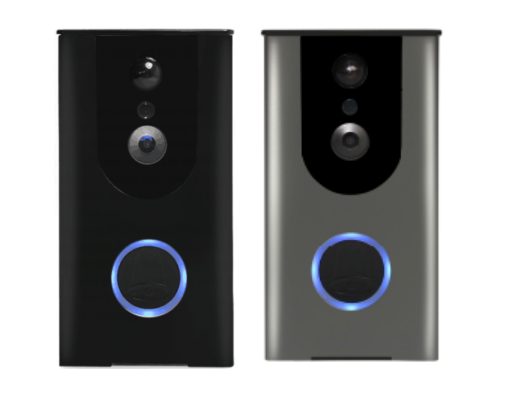

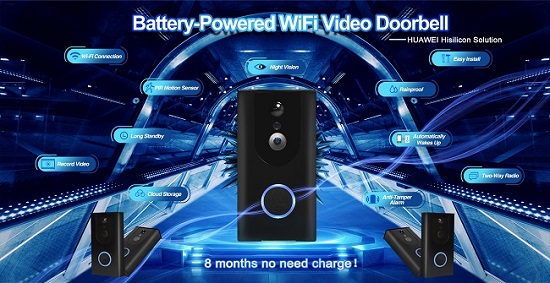

OX-WD2 Wifi Battery Video doorbell

  • Brand   YQYWR
  • Model   OX-WD2
  • Description

    wifi video doorbell,wifi doorbell,wifi video doorphone,oxiang...

Detail
No need charge within 8 months,8 months,8 months!!!
*HD720P image ultra-Low Power Consumption Design
*Quick access via app (automatically wakes up within 3 seconds)
*Respond to users access demands within 1 second
*6pcs IR Leds,D/N mode auto switch by Light Sensor
*APP(wecsee)support iOS&Android,Support 2-way audio with noice cancellation
*Automatic take a picture&video recording when visitor press doorbell
*Anti-Tamper Alarm Function
*PIR Motion Detect Alarm
* Camera view angle covers 166°
* Cloud Storage Function(Save Picture free one month)
*Support max 32GB TF card(save Video recording)
*Built-in 3000mHA Lithium Battery and Easy Charged by USB

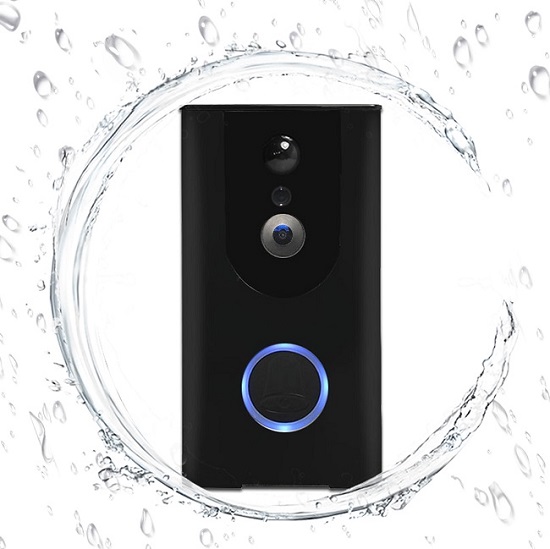

*The Newest Design Case-Weatherproof IP65
*Easy Installation (no need any cable),just Wifi connection
* Support indoor chime(choose)

Model No.

OX-WD2

 Image Sensor

Solution

 OV9712 CMOS Sensor + Hi3518E SoC



 Display Resolution

 1.0MP-1280x720P



 Focal Length

 1.7mm



 Angle of view

 166° Wide angle

 Audio

 Input/Output

 Built-in microphone&speaker



 Type

 2-way audio with noice cancellation

 Video

 Video Compression

 H.264



 Resolution

 1280 * 720@25fps



 Stream

 Double stream



 Night Visibility

 6pcs IR-LEDS



D/N Mode:

Auto switch by Light Sensor

      Alarm

 PIR Motion Detect

 YES ( If PIR on,only can use 1200 times in full battery,please note this!!!)



 Anti Tamper Function

 Yes

 Network

 Protocol

TCP/IP, UDP, DHCP, P2P, RTSP, FTP



 Onvif

No



 Web Server

No



 Wireless Standard

 2.4GHz WiFi IEEE 802.11b/g/n

 App

 By Phone

 Android, iOS (app: wecsee)

Storage

 Mobile phone memory

 Yes



 SD TF Card

Up to 32GB Max.(video recording 15 seconds)



 Cloud Function

 Yes

 Physical

 Dimension

 125(L)*67(W)*23 (H) mm



 Color box

 163(L)*103(W)*56 (H) mm



 Net Weight

 150g



 Gross Weight

 350g



 Shell Material

 Aluminium Alloy

 Power

 Power Supply

 3000mHA battery, charged by USB



 Charge Port

 MICRO USB

Consumption

 Working mode

 Average power consumption: 170mA



 Stand by mode

200uA

Other Feature

 Weatherproof

Yes



 User Accounts

Total 4 Users (Admin user and normal user)



 Working temperature

-20to 55



 Relative humidity:

85% non-condensing

  Certification

 CE, FCC, RoHS,MSDS

  Warranty

 1 year
