OX-ZM503 Body Worn Camera

  • Brand   OXIANG
  • Model   OX-ZM503
  • Description

    Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body Worn...

1. CMOS Sensor:SONY323
2. 2 inch 16:9 TFT-LCD High-Resolution Color Display
3. Built-in 2500mAh battery, 8 hours video recording(1920*1080 30P)
4. Video Resolution:2304x1296p@30fps;1920x1080p@30fps;1280x720@30fps;848x480@30fps
5. Photo£º3M / 5M / 8M / 10M/ 16M/ 20M/ 30M
6. 140¡ã field of view
7.Storage Capacity:Support MicroSD Class10 16G/32G/64G/128G
8.IR Light, Infrared 15 meter night vision with face detect;
9.Water Mark User ID, Time and date Stamp  into Video and important Video tags
10. IP65 waterproof & 1.8 meters shock-proof
11.Motion Detector:at a distance of no more than 2M
12.Video Format£ºMOV ; Audio Format£º.WAV; Photo Format:JPG
13.Password Protection (Optional) Input password to enter menu and playback
14.Support One Button Recording
15.Snap Shot Capture Picture While Video Recording
16.Digital Zoom:Up to 15X
17.Working Temperature£º-30¡«55 degrees Celsius

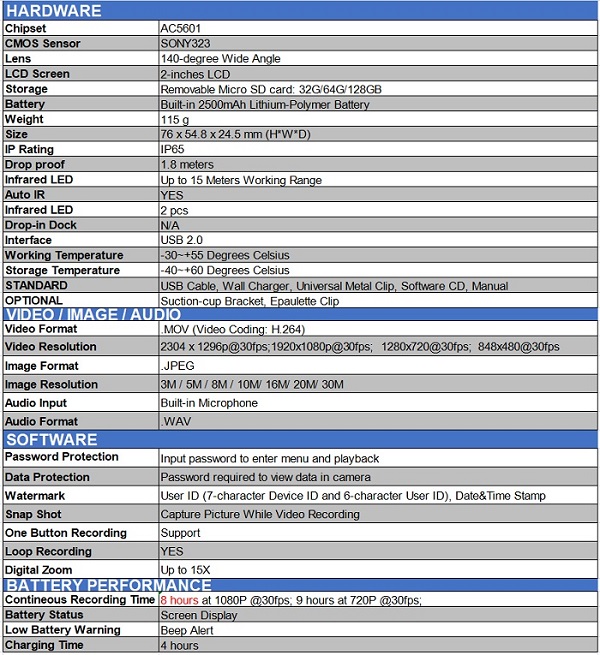

Chipset AC5601
CMOS Sensor SONY323
Lens 140-degree Wide Angle
LCD Screen 2-inches LCD
Storage Removable Micro SD card: 32G/64G/128GB
Battery Built-in 2500mAh Lithium-Polymer Battery
Weight 115 g
Size 76 x 54.8 x 24.5 mm (H*W*D)
IP Rating IP65
Drop proof 1.8 meters
Infrared LED Up to 15 Meters Working Range
Infrared LED 2 pcs
Interface USB 2.0
Working Temperature -30~+55 Degrees Celsius
Storage Temperature -40~+60 Degrees Celsius
USB Cable, Wall Charger, Universal Metal Clip, Software CD, Manual
(Need Extra Cost)
Suction-cup Bracket, Epaulette Clip
Video Format .MOV (Video Coding: H.264)
Video Resolution 2304 x 1296p@30fps;1920x1080p@30fps;1280x720@30fps;848x480@30fps
Image Format .JPEG
Image Resolution 3M / 5M / 8M / 10M/ 16M/ 20M/ 30M
Audio Input Built-in Microphone
Audio Format .WAV
Password Protection (Optional) Input password to enter menu and playback
Data Protection Password required to view data in camera
Watermark User ID (7-character Device ID and 6-character User ID), Date&Time Stamp
Snap Shot Capture Picture While Video Recording
One Button Recording Support
Loop Recording YES
Digital Zoom Up to 15X
Contineous Recording Time 8 hours at 1080P @30fps;  9 hours at 720P @30fps;
Battery Status Screen Display
Low Battery Warning Beep Alert
Charging Time 4 hours


Completely portable color video and audio recorder is the must have camera for event recording. Keep a record of your interactions with suspects or criminals. No more worry about whether or not someone has told a different story or behaved poorly only to blame yo u. This miniature video cam with audio is the prefect device to cover your actions in the field or document a scene. Perfect for anyone who needs to capture video and audio on the go.

About us:

We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaged in Security Product Area. Within last more 10 years, specialized in R&D, Designed, manufacture &sell security product of all over the world.
Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.

Warranty &Return Policy

1. We provide 1 year warranty.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred. Please contact us before leaving any negative or neutral feedback.
4. We will work with you to solve any problems.
5.OEM/ODM is welcome.
