OX-ZP912 4ch 2K ADAS+DSM 4G Dash Camera

  • Brand   OXIANG
  • Model   OX-ZP912
  • Description

    Dual Camera Car DVR Dashcam;Car Dvr;Dash Camera;ouxiang international limitd..... ...

Detail

Quadruple 2K ADAS+DSM 4G Dash Camera

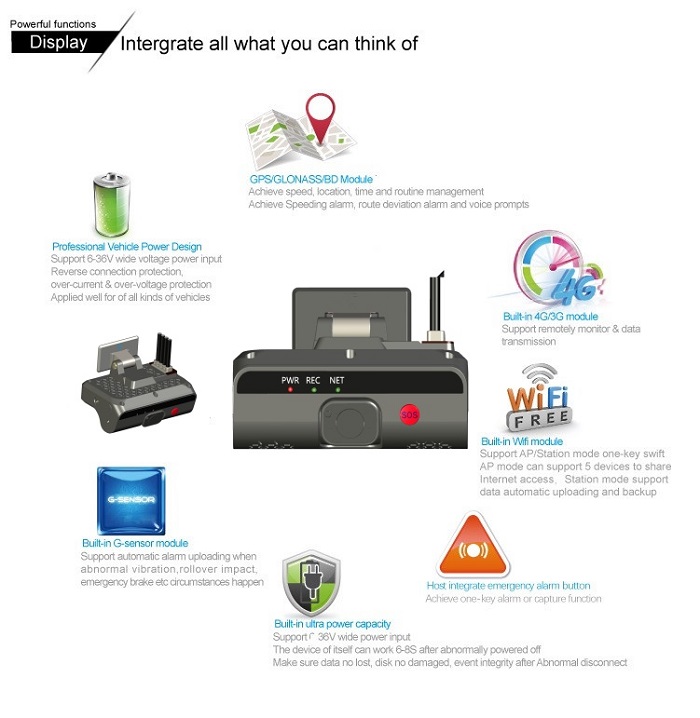

Product Features

Ø H.264 or H.265 codec, and the maximum coding resolution is 1080P 150 frames;

Ø Built-in 2K camera and 1080P camera , expand 2-channel AHD cameras, support 1080P or 720P;

Ø Built in 2 MIC audio inputs and 1 audio output

Ø Support two-way voice intercom between devices and platforms

Ø Support phone calls

Ø Supports 1 TF card with a maximum capacity of 1TB

Ø Supports 4G communication, module can support global frequency bands, 1 SIM card interface

Ø Support built-in GPS+Beidou dual-mode precise positioning, built-in antenna

Ø Support built-in WIFI;

Ø Supports two IO alarm inputs, one SOS button, and one low output alarm

Ø Supports two RS232 interfaces

Ø Support 1-WIRE interface

Ø Support multiple low-power sleep modes, Support vibration wake-up, SMS and phone wake-up, pedestrian approach wake-up

Ø Support full-time sentinel mode, millimeter wave radar will wake up the recorder when someone approaches the vehicle;

Ø Built in multi-channel AI intelligent algorithms, 1.5T NPU, can support DMS ADASBSDIdentity recognition, seat belt detection and other functions;

Ø Support preview videos and parameter configuration for mobile apps, clients, and platform software

Ø Large capacity supercapacitors have longer delay times, providing dual protection for the integrity of video files

Ø Dedicated file system to improve disk read and write efficiency and ensure more stable video recording;


Product Specification Parameters



ITEM

Technical Specifications

System

Language

Chinese/English

Operate system

Linux

Menu

WEB

Processor

CPU

ARM Dual-Core processor@1.5GHz

DDR

4Gb

Flash

2Gb

Video recording system

Video input

Built-in 2K sensor(front)angle(130°), support WDR

Built-in AHD Camera(1080P/Interior)angle(135°),support IR-CUT and IR

Support external 2-channel AHD cameras(1080P/720P)

Video format

PAL /NTSC

Video compression

H.264/H.265

Video Resolution

2K1080P720PD1

Video quality

Level 1 to 8, best level 1, lowest level 8

Video rate

CIF: 256Kbps ~ 1.5Mbps, Multi level image quality

HD1: 600Kbps ~ 2.5Mbps, Multi level image quality

D1: 800Kbps ~ 3Mbps, Multi level image quality

720P: 1Mbps-4Mbps, Multi level image quality

1080P: 1Mbps~8Mbps, Multi level image quality

2K2Mbps~16Mbps, Multi level image quality

Recorder mode

Default automatic recording, support ignition recording, alarm recording

Audio

Audio input

2-channel audio input, CH1/CH2 built-in MIC

Audio output

1 channel, built-in speaker(≤8Ω2W)

Audio compression

G.711A

Recording mode

Simultaneous recording of sound and video

Alarm input

2-CH Sensor input

1-CH SOS button

Alarm output

1-channel low-level output (supports remote oil and power cut-off function, can be connected to a relay)

Communication interface

2-CH RS232

1-CH 1-Wire input

Wireless transmission

Built-in 4G, TDD-LTE, FDD-LTESupport sleep reporting and voice call function(Specific modules)

Built-in 2.4G WIFIsupport 802.11b/g/n

Bluetooth 4.0: Supports Bluetooth low-power wake-up, Bluetooth key, driver ID management and other functions

GPS location

Support GPS / BD module

Reset button

3 seconds to restore WIFI default password, 8 seconds to restore factory settings;

Wake up mode

ACC wake-up, vibration wake-up, Bluetooth wake-up, radar wake-up, 4G wake-up (phone/SMS), timed wake-up

Sensor

Built in 3-axis acceleration

Millimeter wave radar

Support all day sentry mode (sentry mode can be turned on after turning off the engine)

Disk

TF Card

1 TF card, maximum support 512GB

Upgrade mode

Support TF card upgrade, FTP remote automatic upgrade

Storage mode

Proprietary bare disk storage mode

SIM card

Micro SIM card

AI algorithm

ADAS

Lane departure detection, pedestrian detection, vehicle distance detection

DSM

Fatigue driving test and unsafe driving behavior test(smoke/phone call)

BSD

Left blind area, right blind area detection

Identification

Support face recognition

Seat belt

Support seat belt detection

Power supply and power consumption

Power

Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support timing switch, delay shutdown function.

Input voltage

DC:+9V ~ +36V

Output voltage

+5V@500mA

power-cut protect

2X15F super capacitor,Longer delay time

Power waste

8WWithout peripherals

work environment

Temperature

-20to +70

Humidity

10% to 90%

Security management



Two level management of user password and administrator password

Platform access

JT/T808-2013, JT/T808-2019, JT/T1078-2016

CMSV6

RTSP

Appearance size

118*82*45mm(Including bracket 87mm

Net weight
