GPS(optional)

GPS module can be attached, when you take a photo,the latitude and longitude of print on the photo, video support when the video record latitude and longitude, by special software, can show the three-dimensional lines on the map

WIFI (optional)

Support WIFI wireless transmission(optional)

External Mini Camera

Video and camera resolution is the same as the main camera (optional)

Remote control

3-5M to take photo/record video or stop

language

Support Chinese, English and Russian

Chipset

Ambarella A7LA50

Sensor

 5MP CMOS,1/3" Color CMOS

LCD Screen

2 inch 16:9 TFT-LCD High-Resolution Color Display

Recording Angle

Wide Angle 140 degrees

Waterproof

IP65

Falling from height

Resistance to fall from a height of not less than 2M

Compatible with the operating system

WINDOWS XP/2000/ME、WIN7/WIN8/WIN10

Battey Capacity

Replaceable large capacity  3600Mah lithium battery

Battery Life

Continuous recording time NO LESS THAN:
12.5 hours (battery full charged, IR closed, Video resolution  848x480P 30fps)
10 hours (battery full charged, IR closed, Video resolution 1280x720P 30fps)
8 hours(battery full charged, IR closed, Video resolution 1920x1080P 30fps)

Storage Capacity

16G/32G/64G/128G

Recording Time for 32 GB Storage

Recording time until card get full NO LESS THAN:
5 hours 40 minutes (resolution 1920x1080P 30fps)
8 hours 30 minutes (resolution 1280x720P 30fps)
13hours 40 minutes (resolution 848x480P 30fps)

Zoom

Auto digital zoom, manual zoom 2~64 times

Video input

maximum support 2304*1296P

Video output

AV jack:compatible with NTSC/PAL

Video Transfer

USB 2.0

Video Format

H.264 , MPEG4

Video Resolution

2304x1296 30p / 1920x1080 30p
1280x720 60p / 1280x720 30p
848X480 30P(default 1920*1080 30p)

Motion Detector

The ability to adjust the recording if the motion(at a distance of no more than 2M)(default: OFF)

Photo Format

JPEG,33M,30M,28M,21M,16M（default),12M,8M,5M,3M

Burst Photo

2/3/5/10/15/20/30 Shot burst picture taking

Snap Shot

Capture Photos During Video Recording(default 1920*1080 30p)

Shutter time

1/2---1/2000  seconds

Auto take Photo

3 seconds, 5 seconds, 10 seconds, 30 seconds optional（default: Off）after opening, waiting to set the time will automatically take pictures

Audio

Support synchronous audio video, also can choose separately

Audio Microphone

High Quality Build-in Microphone.

Audio Format

MP3

Night Vision

Up to 15 Meters with Visible face image

IR Light

8 IR Light

white balance

Automatic white balance correction

PTT

Can Connect to Different Types of Radios

High-definition multimedia interface(HDMI）

Hd HDMI1.3 interface, the maximum support 1080 p output mode
Television output signals: NTSC/PAL;(optional)

Back clip

High Quality Metal Clip with 360 degrees Rotation

Water Mark

User ID, Time and date Stamp,GPS coordinates Imbedded into Video

Video tags

In the process of recording, press the video mark key video call video automatically convert hd video and marked; The importance of the difference between video

One kye record

Long press video boot, law enforcement apparatus can direct access to video mode

Pre-record

Max 40 seconds（default: Off）

Post-record

 10S/20S/30S/60S/300S (default: Off)

Unique ID number/unit

Include 5 digit device ID and 6 digit police ID

Password protect

To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.

Auto power off

10 minutes，5minutes ，3minutes  (default: 10minutes)

Size/weight

100mm*60mm*28mm/168g

Working Temperature

-30～70 degrees Celsius

Storage temperature

-40～80 degrees Celsius

Working current

Power on about 240mA, the video about 500mA, IR on increase of 100mA

Background management software

support background encryption, host computer software management；To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.

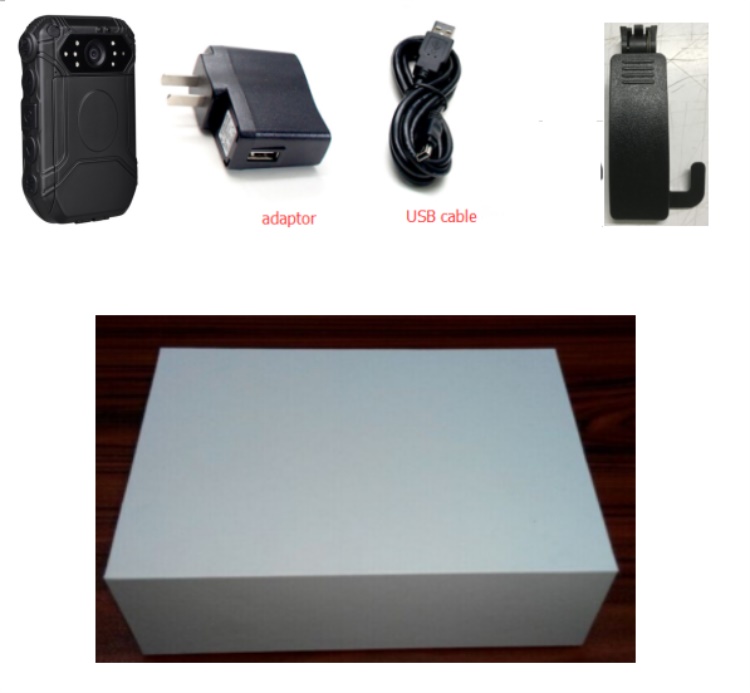

Standard Accessories

USB cable,USB Charger, Universal metal clip,Driver CD, Instruction Manual.
