OX-WP6 Wifi Peephole Video Doorbell

  • Brand   OXIANG
  • Model   OX-WP6
  • Description

    wifi video doorbell,wifi doorbell,Wifi Peephole Video Doorbell,New arrival cat eye video 2.8 inch HQ...

Detail

New arrival cat eye video 2.8 inch HQ screen wifi doorbell camera

Products Introduction:


a. WiFi video doorbell connects to network via wireless router or network cable.Mobile devices include smartphone or tablet,could connect to the doorbell;After the visitor rings,mobile devices could interact with doorbell via real time video and audio,user can view the visitor,then decide to whether intercom or open the door etc ;
b. WiFi doorbell support PIR and motion detection alarm,with IR night vision,12V power supply ;
c. 2.4G Wifi,real time viewing,max to support 100M broadband,support Android and IOS operation  system, multi doorbell and multi mobile device can work at the same time ;
d. With CE, FCC and ROHS certificates.

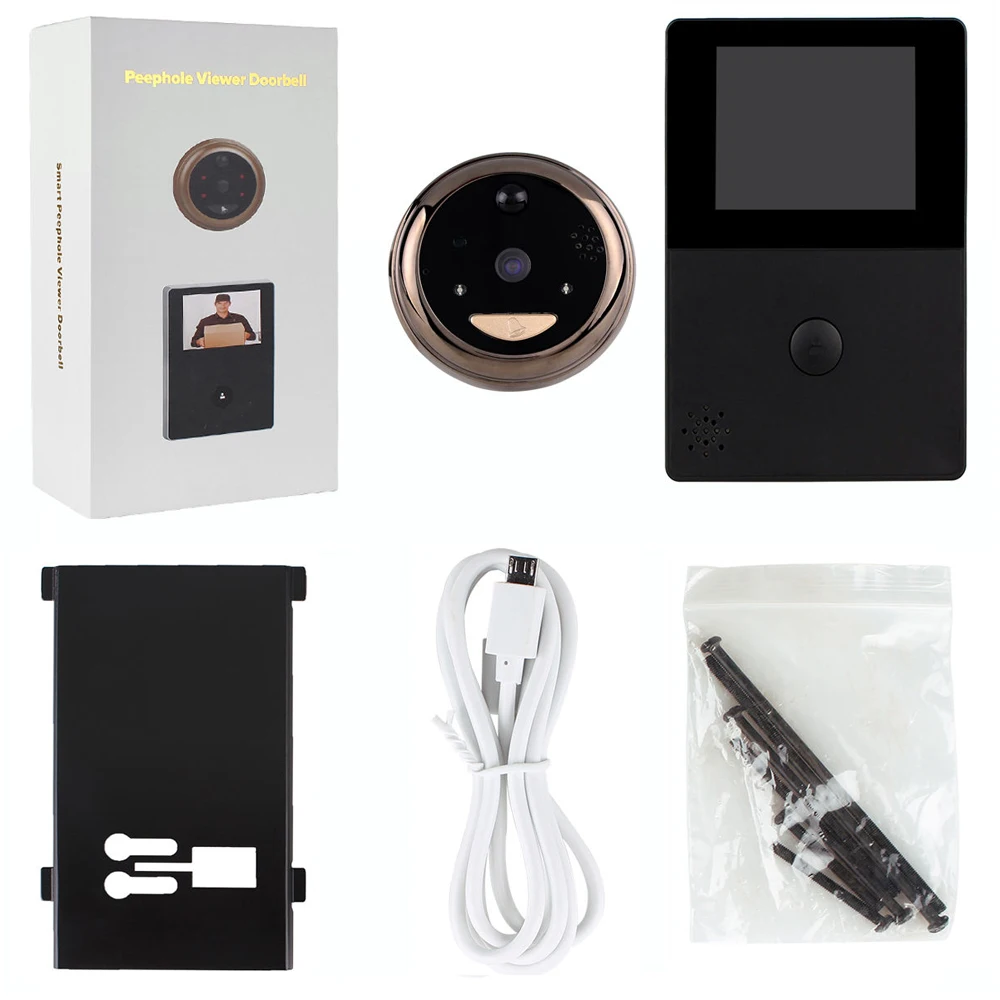

Detail pictures:


Funciton:

*The Newest Design Wifi Peephole Video Doorbell

*RTOS Operating Systems

*Ultra-Low Power Consumption Design(standby<10uA),if everyday use 5-8 times,the machine can use more than 6 months(PIR Off)

*Easy Installation (no need any cable)

*PIR Motion Detect (Passive Infrared Detection) Alarm ( If PIR on,full battery only can use 600 times,please note this!!!)

*2.8 Inch OLED HD Screen

*Built-in Ding Dong,Support IR Automatic night vision function

*APP Support iphone,Android,Support Two-way Audio Function

*Unique-Design Removable Lithium Battery and Easy Charged by USB

*Automatic take a picture when visitor press doorbell

* Cloud Storage Function

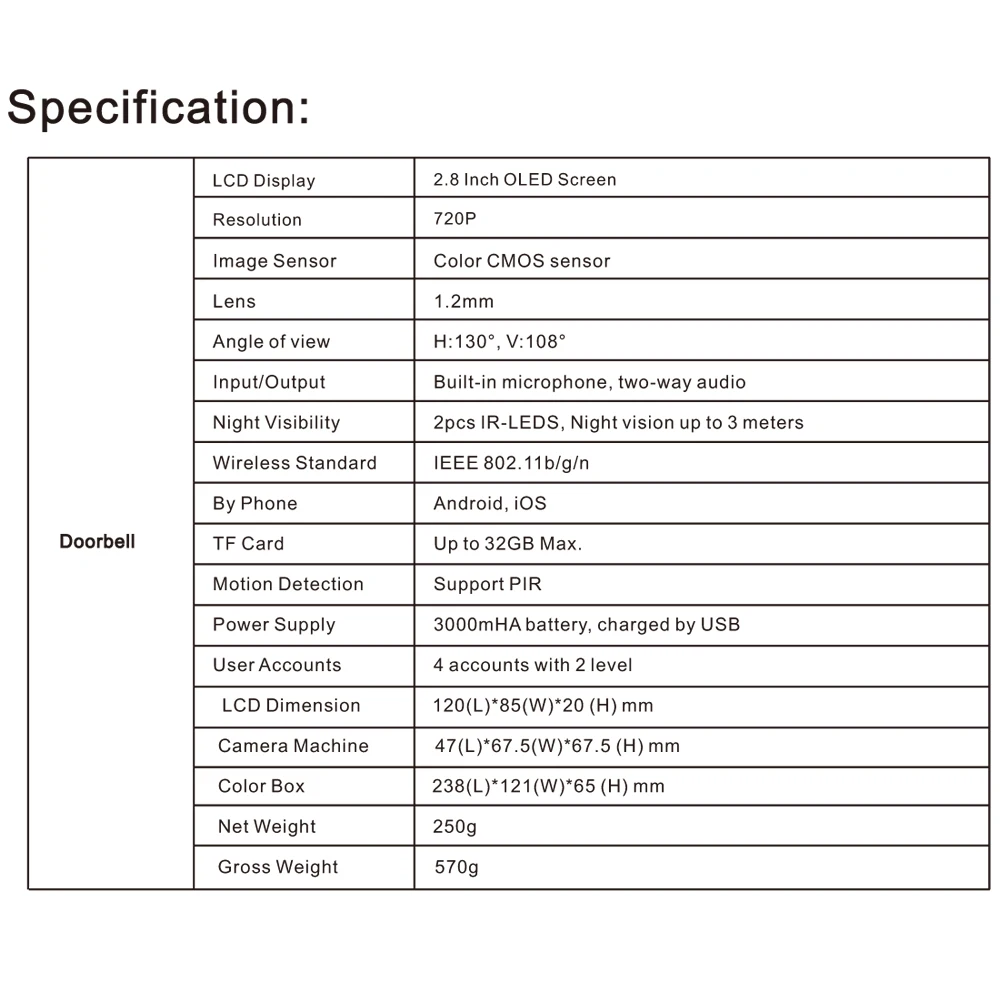

Specification:

 Image Sensor

 Image Sensor

 Color CMOS sensor

 Display Resolution

 1.0MP/720P

LCD Display

 Display Size

 2.8 Inch OLED Screen

 Lens

 Lens Type

 Glass Lens

 Focal Length

 1.2mm

 Angle of view

 Horizontal: 130°  Vertical: 108°

 Audio

 Input/Output

 Built-in microphone, two-way audio

 Audio Compression

 G.711U

 Build-InDingDong

 YES<=90DB

 Video

 Video Compression

 H.264

 Image Frame Rate

 15fps

 Resolution

 640* 480

 APP Resolution

 640* 480

 Snapshot resolution

 320*240

 Stream

 Double stream

 Night Visibility

 2pcs IR-LEDS, Night vision1-2 meters

       PIR

 Body Infrared Detection

 YES ( If PIR on,only can use 600 times in full battery,please note this!!!)

 Network

 Protocol

TCP/IP, UDP, DHCP, P2P, RTSP, FTP

 Onvif

No

 Web Server

No

 Wireless Standard

 IEEE 802.11b/g/n

 App

 By Phone

 Android, iOS

Storage

 TF Card

 Up to 32GB Max.

 Build-in 8G TF Card (kingston brand)

 Cloud Storage

 Yes

 Physical

 LCD Dimension

 120(L)*85(W)*20 (H) mm

 Camera Machine

 47(L)*67.5(W)*67.5 (H) mm

 Color Box

 238(L)*121(W)*65 (H) mm

 Net Weight

 250g

 Gross Weight

 570g

 Shell Material

 Aluminium Alloy

 Power

 Battery

 Removable Lithium Battery 3000mHA

 Charge Port

 MICRO USB

 Power Switcher

 On/Off

Consumption

 Working mode

 Average power consumption: 1.5W

 Stand by mode

IR Off: <10uA; IR On:<50uA

 User Accounts

Total 4 Users (Admin user and normal user)

  Certification

 CE, FCC, RoHS

  Warranty

 1 year


Certificates:
