OX-ZM603 Body Worn Camera

  • Brand   YQYWR
  • Model   OX-ZM603
  • Description

    Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body Worn...

Detail

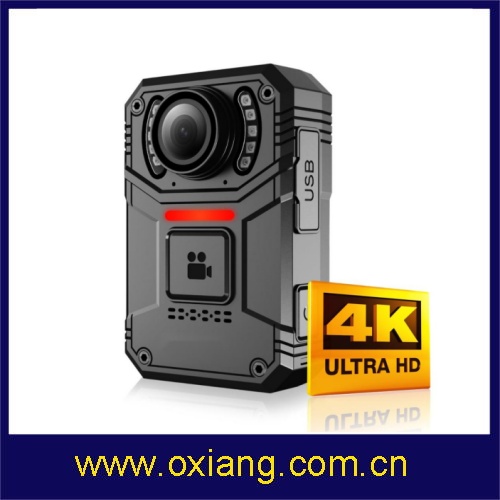

Police Body Worn Camera
Optional functions:
External HD mini button camera
Support GPS:(GPS Can track of video playback)
Remote control (3-5M to take photo/record video or stop)
Wifi Function(15meters live video streaming)

Backup 2600mah Battery&charger box


Support Chinese, English ,Vietnamese
1. Support single or double recording video
2. 2 inch 4£º3 TFT-LCD High-Resolution Color Display
3. Replaceable 2200mAh battery, 6 hours video recording(1920*1080 30P)
4. Video Resolution: 2304x1296 2K/30p, 2560*1080/30p,1920X1080/30P¡¢1440*1080 /30p,1280*720/60P/30P
848*480/30P (default 1920*1080 30P)
5. 5.0 MP CMOS Sensor,JPEG,34M 23M¡¢18M¡¢13M¡¢9M¡¢6M¡¢4M£¨default 4M:2688*1512£©
6. 140¡ã field of view
7.Support Storage Capacity:16G/32G/64G
8. 6 IR Light, Infrared 15 meter night vision with face detect
9.Auxiliary Light£º one white flashlight and one red laser pointer
10. Water Mark User ID, Time and date Stamp  into Video and important Video tags
11. IP66 waterproof & 2 meters shock-proof
12.Motion Detector:at a distance of no more than 2M
13.Password protect:To set an administrator password to allow deletion via software.User can only view the videos but cannot delete it.
14. Video Output£ºAV jack:compatible with NTSC/PAL
15.PTT:Can Connect to Different Types of Radios
16.Support Burst Photo£»Snap Shot£¬Auto take Photo and  Auto power off
17. 90mm*63mm*38mm/165g




Product Quality Control

Parameters Discription
WIFI (optional) Built-in Wifi Function:(1£©15meters live video streaming£»(2£©Take photo and Video£¬Video and  Photo playback£»(3£©Download photo and  Video to mobile phone or tablet from TF Card
GPS (optional) Builtin GPS model

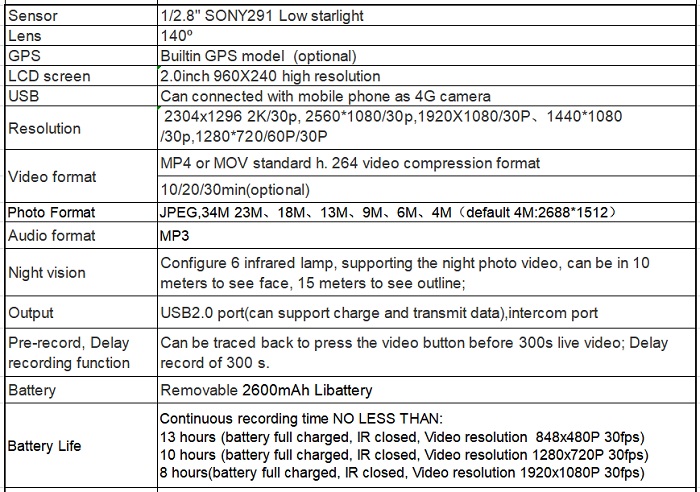

Sensor 1/2.8" SONY291 Low starlight
Lens 140o
LCD screen 2.0inch 960X240 high resolution
USB Can connected with mobile phone as 4G camera
Resolution  2304x1296 2K/30p, 2560*1080/30p,1920X1080/30P¡¢1440*1080 /30p,1280*720/60P/30P
848*480/30P (default 1920*1080 30P)
Video format MP4 or MOV standard h. 264 video compression format
10/20/30min(optional)
Photo Format JPEG,34M 23M¡¢18M¡¢13M¡¢9M¡¢6M¡¢4M£¨default 4M:2688*1512£©
Audio format MP3
Night vision Configure 6 infrared lamp, supporting the night photo video, can be in 10 meters to see face, 15 meters to see outline;
Output USB2.0 port(can support charge and transmit data),intercom port
Pre-record, Delay recording function Can be traced back to press the video button before 300s live video; Delay record of 300 s.
Battery Removable 2600mAh Libattery
Battery Life Continuous recording time NO LESS THAN:
13 hours (battery full charged, IR closed, Video resolution  848x480P 30fps)
10 hours (battery full charged, IR closed, Video resolution 1280x720P 30fps)
8 hours(battery full charged, IR closed, Video resolution 1920x1080P 30fps)

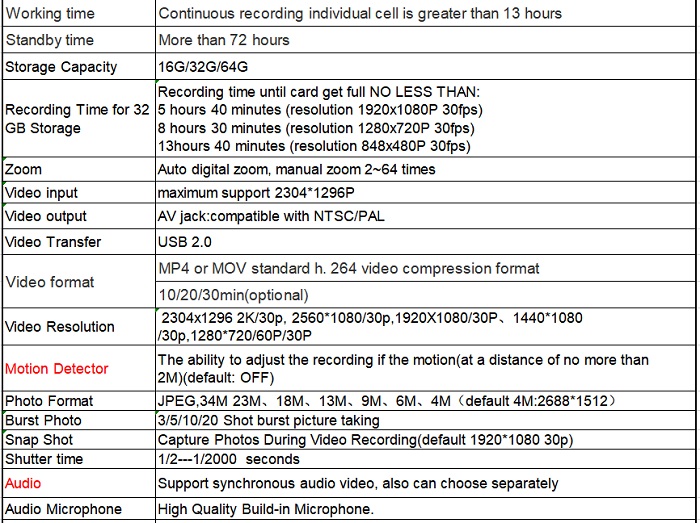

Working time Continuous recording individual cell is greater than 13 hours
Standby time More than 72 hours
Storage Capacity 16G/32G/64G
Recording Time for 32 GB Storage Recording time until card get full NO LESS THAN:
5 hours 40 minutes (resolution 1920x1080P 30fps)
8 hours 30 minutes (resolution 1280x720P 30fps)
13hours 40 minutes (resolution 848x480P 30fps)
Zoom  Auto digital zoom, manual zoom 2~64 times
Video input  maximum support 2304*1296P
Video output  AV jack:compatible with NTSC/PAL
Video Transfer USB 2.0
Video format MP4 or MOV standard h. 264 video compression format
10/20/30min(optional)
Video Resolution  2304x1296 2K/30p, 2560*1080/30p,1920X1080/30P¡¢1440*1080 /30p,1280*720/60P/30P
848*480/30P (default 1920*1080 30P)
Motion Detector The ability to adjust the recording if the motion(at a distance of no more than 2M)(default: OFF)
Photo Format JPEG,34M 23M¡¢18M¡¢13M¡¢9M¡¢6M¡¢4M£¨default 4M:2688*1512£©
Burst Photo  3/5/10/20 Shot burst picture taking
Snap Shot  Capture Photos During Video Recording(default 1920*1080 30p)
Shutter time 1/2---1/2000  seconds
Audio Support synchronous audio video, also can choose separately
Audio Microphone High Quality Build-in Microphone.
Audio Format MP3
Night Vision Up to 15 Meters with Visible face image
IR Light 6 IR Light
white balance Automatic white balance correction
PTT Can Connect to Different Types of Radios
High-definition multimedia interface £¨HDMI£© Hd HDMI1.3 interface, the maximum support 1080 p output mode
Television output signals: NTSC/PAL;(optional)
Back clip  High Quality Metal Clip with 360 degrees Rotation
Water Mark User ID, Time and date Stamp,GPS coordinates Imbedded into Video
Video tags In the process of recording, press the video mark key video call video automatically convert hd video and marked; The importance of the difference between video
One kye record Long press video boot, law enforcement apparatus can direct access to video mode.(optional)
Long press audio boot, Law enforcement apparatus can direct access to recording mode.  (optional)
Pre-record  Max 25 seconds£¨default: Off£©
Post-record  5 seconds/30 second/1 minutes/ 5 minutes(default: Off)
Unique ID number/unit Include 5 digit device ID and 6 digit police ID
Password protect To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.
Auto power off 5 minutes£¬3minutes £¬1minutes  (default: 5minutes)
Working Temperature -30¡«70 degrees Celsius
Storage temperature -40¡«80 degrees Celsius
Working humidity 10%~80%

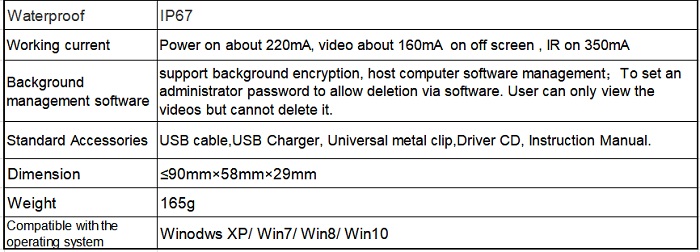

Waterproof IP67
Working current Power on about 220mA, video about 160mA  on off screen , IR on 350mA
Background management software support background encryption, host computer software management£»To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it.

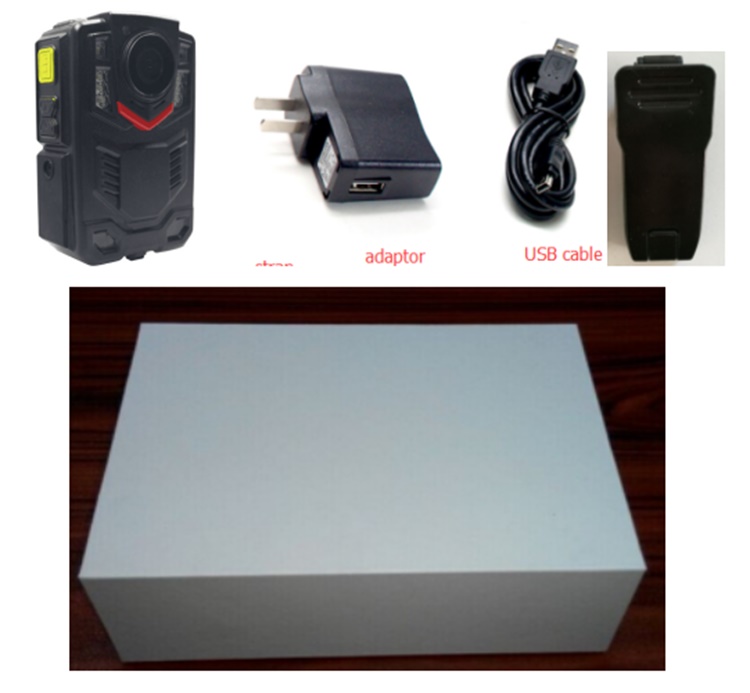

Standard Accessories USB cable,USB Charger, Universal metal clip,Driver CD, Instruction Manual.
Dimension ¡Ü90mm¡Á58mm¡Á29mm
Weight 165g
Compatible with the operating system Winodws XP/ Win7/ Win8/Win10

Application:

Completely portable color video and audio recorder is the must have camera for event recording. Keep a record of your interactions with suspects or criminals. No more worry about whether or not someone has told a different story or behaved poorly only to blame yo u. This miniature video cam with audio is the prefect device to cover your actions in the field or document a scene. Perfect for anyone who needs to capture video and audio on the go.

About us:

We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaged in Security Product Area. Within last more 10 years, specialized in R&D, Designed, manufacture &sell security product of all over the world.
Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.



Warranty &Return Policy

1. We provide 1 year warranty.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred. Please contact us before leaving any negative or neutral feedback.
4. We will work with you to solve any problems.
5.OEM/ODM is welcome.
